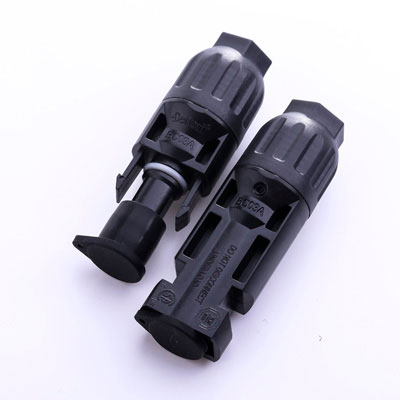

BC03A Photovoltaic Connector (Female and male cable coupler)

DC Photovoltaic connectors are connected to DC wires and ports to supply direct current (DC) power to a power grid. These connectors are quick and easy to install with no special tools required. They are also easily mated with other connectors, such as MC4 connectors. The use of high-quality engineered plastic also ensures the reliable performance and long service life. Each photovoltaic connector is TUV and CSA certified with an excellent quality and stable performance.

  • BC03A Photovoltaic Connector (Female and male cable coupler)
  • BC03A Photovoltaic Connector (Female and male cable coupler)
  • Rated voltage:1000V
  • Rated current:30A
  • Contact resistance: ≤0.5mΩ
  • Mechanical endurance: ≥250 times
  • Waterproof Rating: IP67(1M,1H)
  • Flammability Rating: UL94-V0
  • Applicable wire gauge: 2.5/4.0/6.0mm2
  • Outer cable diameter(OD): 5-6.8mm
Model: BC03A-M-C24/BC03A-F-C24
Connector Gender Male and Female
Backshell Assembly Style Straight Crimp
Technical Parameters

General

Rated Current 30A
Rated Voltage 1000V DC(TUV), 600/1000V DC(CSA)
Contact Resistance ≤0.5mΩ
Insulation Resistance ≧400MΩ
Rated Impulse Withstand Voltage 6000V
Over-voltage Category Ⅲ
Pollution Degree 2
Waterproof Rating IP67(mated)
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃

Connection Data

Number of Contacts 01 Pin
Applicable Wire Gauge 2.5/4.0/6.0mm² or 14/12/10AWG
Outer Cable Diameter 5~6.8mm

Material

Housing Material PC(Polycarbonate)
Contact Material Red Copper(punching)/CuZn Alloy(cutting)
Contact Surface Tin-plated/Silver-plated
Sealing Gasket Silicon

Standards

EN 6285: 2014 IEC - Safety requirements and tests
UL6703 USA and Canada - Safety requirements and tests
RoHS Compliant Yes

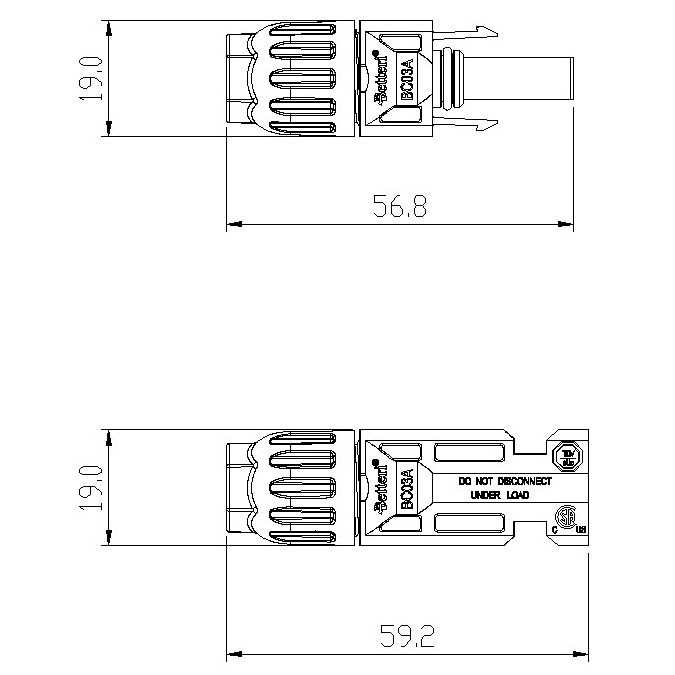

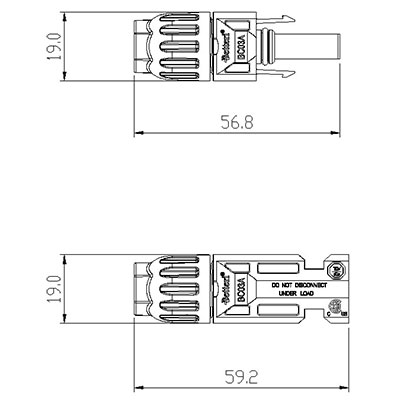

Dimensions

Length 56.8mm(male), 59.2mm(female)
Width 19.0mm
Height 19.0mm
Weight 7.60g(male), 9.53g(female)
  • BC03AB_62852_TUV MARK
  • BC03AB
