BC03H Photovoltaic Connector (Female and Male Cable Coupler)

BC03H Photovoltaic Connector (Female and Male Cable Coupler)

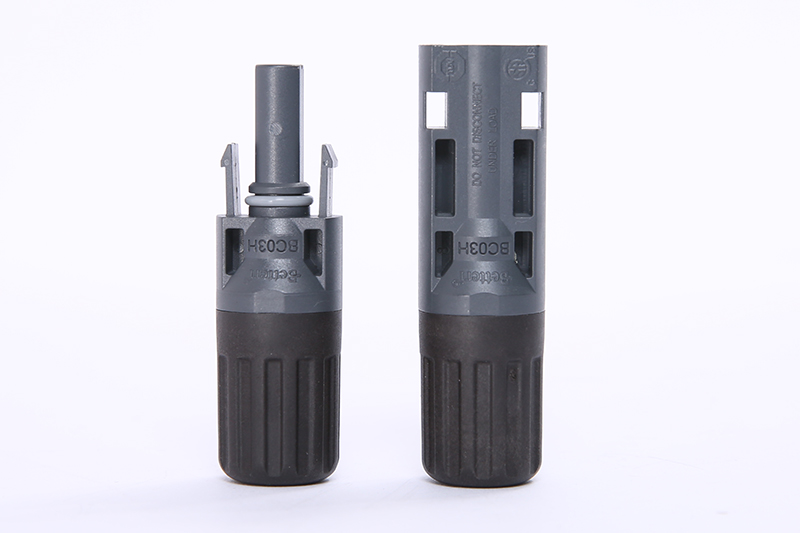

Designed for ground-based photovoltaic systems, this photovoltaic cable coupler simplifies the connection between inverters and component arrays. Its installation is both quick and simple, eliminating the need for special tools. These connectors are highly compatible, easily pairing with widely-used options like MC4 connectors. Constructed from premium engineering plastic, they ensure dependable performance and extended durability. Each connector undergoes rigorous testing and has received TUV and CSA certifications, reflecting its superior quality and stability.

Request a Quote
Technical Parameters
BC03H Photovoltaic Connector (Female and Male Cable Coupler)

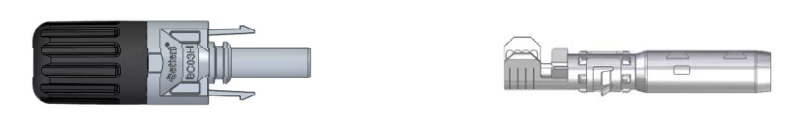

BC03H Male Coupler

BC03H Photovoltaic Connector (Female and Male Cable Coupler)

BC03H Female Coupler

General

Rated Current 30A(TUV), 35A(CSA)
Rated Voltage 1100V DC(TUV, CSA)
Contact Resistance ≤0.5mΩ
Insulation Resistance ≧400MΩ
Rated Impulse Withstand Voltage 6000V
Over-Voltage Category Ⅲ
Pollution Degree 2
Waterproof Rating IP67(mated)
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃
Maximum Operating Temperature 115℃

Connection Data

Number of Contacts 1 Pin
Applicable Wire Gauge 2.5/4.0/6.0mm² or 14/12 AWG
Outer Cable Diameter 5~6.8mm

Material

Housing Material PC, PA66
Contact Material Red Copper(punching)/CuZn Alloy(cutting)
Contact Surface Tin-plated/Silver-plated
Sealing Gasket Silicon

Standards

EN 6285: 2014 IEC - Safety requirements and tests
UL6703 USA and Canada - Safety requirements and tests
RoHS Compliant Yes

Dimensions

Length 56.8mm(male), 59.2mm(female)
Width 19.0mm
Height 19.0mm
Weight 7.60g(male), 9.53g(female)
