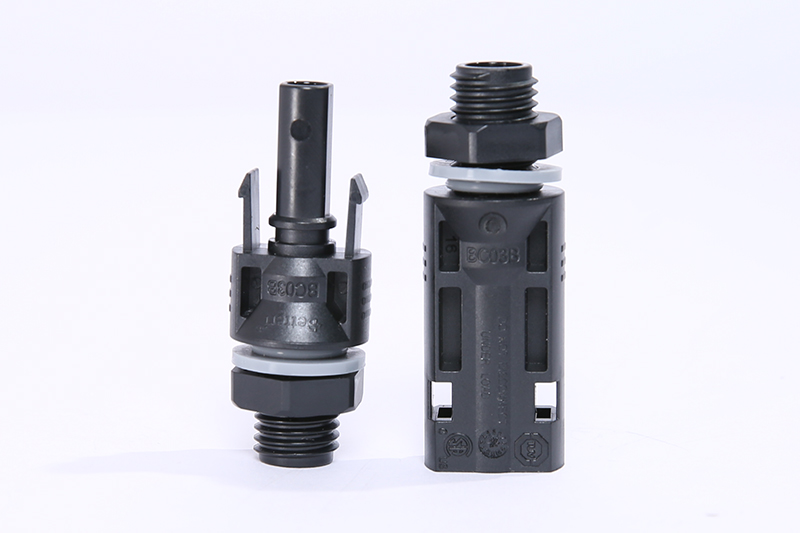

BC03B-ES Photovoltaic Connector (Female and Male Cable Coupler)

BC03B-ES Photovoltaic Connector (Female and Male Cable Coupler)

Designed for connecting inverters, PV panels, and solar systems, this photovoltaic connector ensures a simple and user-friendly experience during installation and maintenance. Its fire-resistant design and IP67 waterproof rating make it a reliable choice for various solar applications. Compatibility with MC4 connectors adds flexibility, allowing seamless integration into different setups.

Request a Quote
Technical Parameters
BC03H Photovoltaic Connector (Female and Male Cable Coupler)

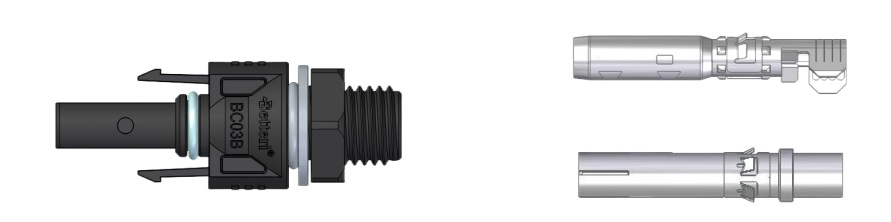

BC03B-ES Female Coupler

BC03H Photovoltaic Connector (Female and Male Cable Coupler)

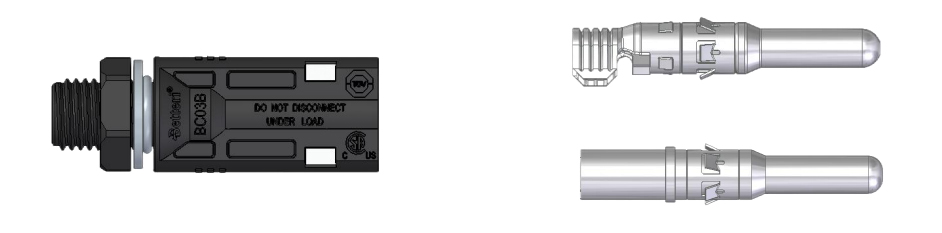

BC03B-ES Male Coupler

General

Rated Current 30A(TUV), 40A(CSA)
Rated Voltage 1000V DC(TUV), 600/1000V DC(CSA)
Contact Resistance ≤0.5mΩ
Insulation Resistance ≧400MΩ
Rated Impulse Withstand Voltage 6000V
Over-Voltage Category Ⅲ
Pollution Degree 2
Waterproof Rating IP67(mated)
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃
Maximum Operating Temperature 115℃

Category

Connector Gender Male and female
Backshell Assembly Straight crimp
Fixed Thread Metric M12
Size Of Panel Cutout ⌀12.5+0.2/0
Length Of Screw Body 17mm

Connection Data

Number of Contacts 1 Pin
Applicable wire gauge 2.5/4.0/6.0mm² or 14/12/10AWG
Outer cable diameter 4.8~7.8mm

Material

Housing Material PC(Polycarbonate)
Contact Material Red Copper(punching)/CuZn Alloy(cutting)
Contact Surface Tin-plated/Silver-plated
Sealing Gasket Silicon

Standards

EN 6285: 2014 IEC - Safety requirements and tests
UL6703 USA and Canada - Safety requirements and tests
RoHS Compliant Yes

Dimensions

Length 52.0mm(male), 54.5mm(female)
Width 19.0mm
Height 19.0mm
Weight 5g(male), 7g(female)
  • BC03B TUV Certification
