Solar Connectors Applications

Solar connectors are designed to be used in photovoltaic systems, serving as important components for connecting solar panels (PV modules) with other elements such as inverters, combiner boxes, and battery storage systems.

A typical solar PV system consists of solar panels, a solar controller, batteries, and an inverter. Solar panels convert sunlight into electricity, which is stored in batteries. The inverter then transforms the stored energy into AC power for use, with the solar controller overseeing and managing the entire process in real-time to ensure optimal operation.

Connectors play a crucial role in various parts of a solar PV system. For example, they are used to facilitate power transmission during charging or discharging processes. Additionally, the solar controller, often referred to as the “central system” for the proper functioning of PV installations, relies on connectors for transmitting control signals effectively.

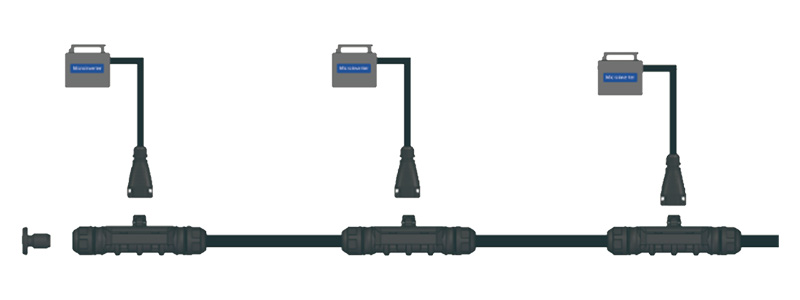

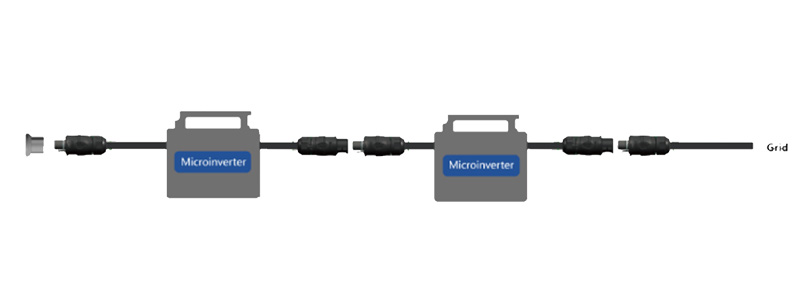

Daisy-Chain Wiring Method
  • BC01BC01
  • BC05ABC05A

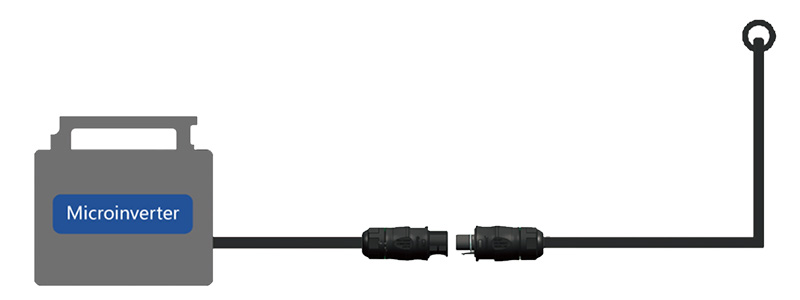

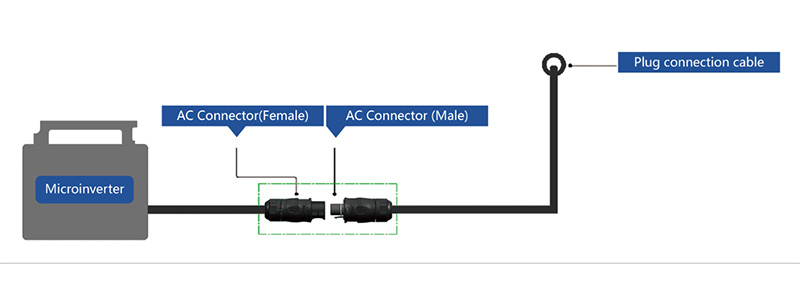

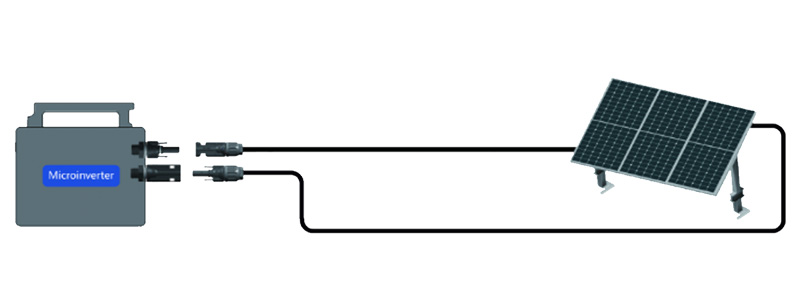

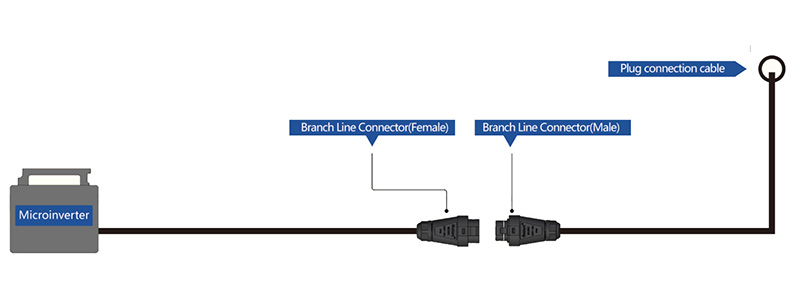

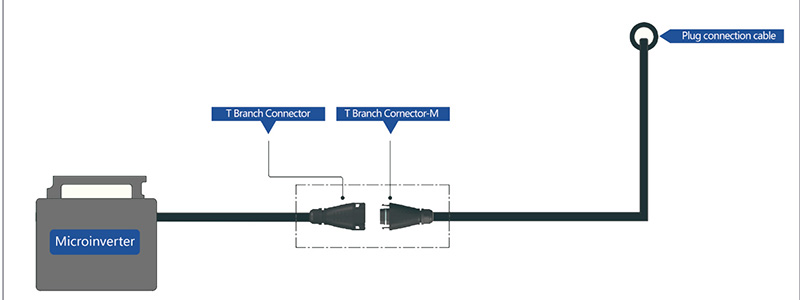

Wiring Method for Single Micro Inverter
  • BC01BC01
  • BC05ABC05A
  • BC05CBC05C
  • DC ConnectorsDC Connectors

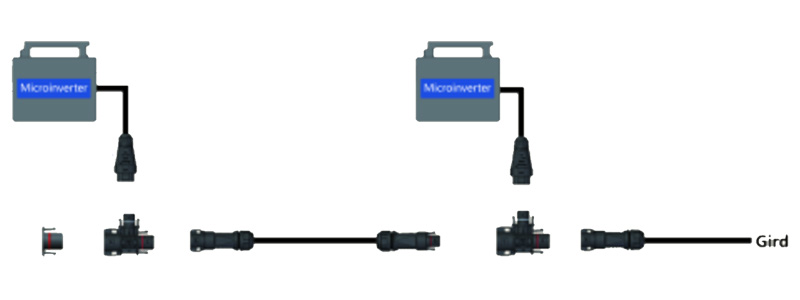

Wiring Method for Multi-Inverters
  • BC05ABC05A
  • BC05CBC05C
Applications
  • Residential Solar Systems
    In home solar systems, photovoltaic connectors are essential for linking rooftop panels to inverters, ensuring smooth energy flow and efficient operation.
  • Commercial and Industrial Uses
    For large-scale solar farms and commercial installations, these connectors efficiently connect multiple solar panels, supporting reliable and consistent power output.
  • Portable and Mobile Solutions
    In portable solar devices, connectors make it easy to attach and detach components, providing convenience for users and enabling hassle-free mobility.
