The solar connector is a 300V/16A three-pin low-current AC connector designed for reliable outdoor and industrial applications. Featuring a compact structure, cost-effective design, and IP68 protection, the connector meets UL94-V0 (or higher) flame-retardant requirements and supports long-term outdoor operation.
With a quick installation mechanism and secure plug-and-lock mating design, the connectors provide a high level of safety and convenience for both factory assembly and on-site installation, making them suitable for a wide range of application scenarios.

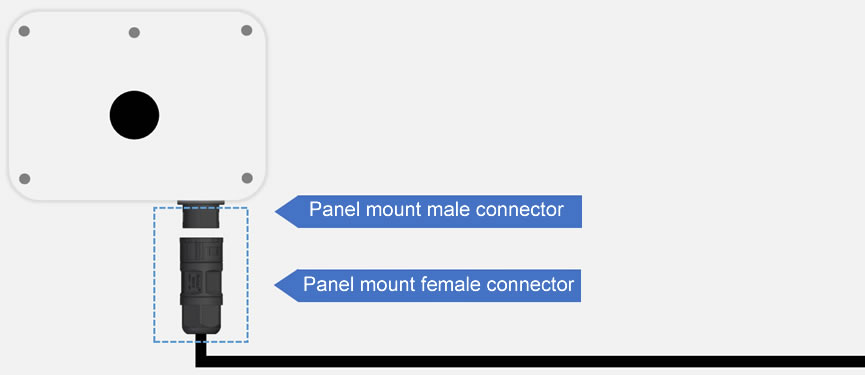

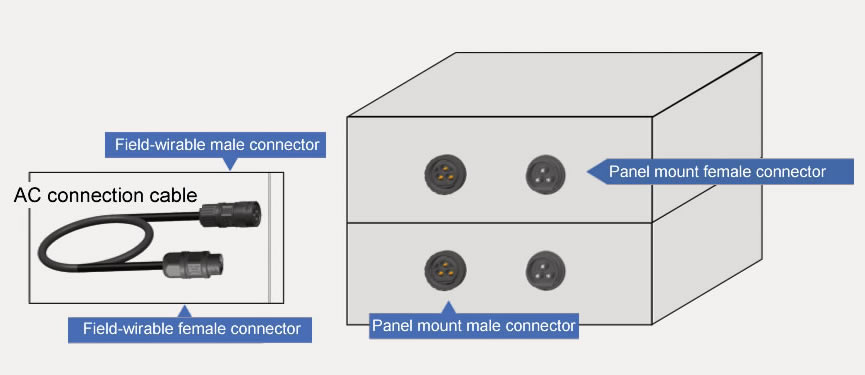

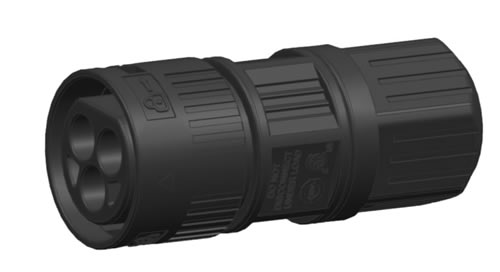

BC01B Series AC Connectors: Panel-Mounted & Field-Wirable

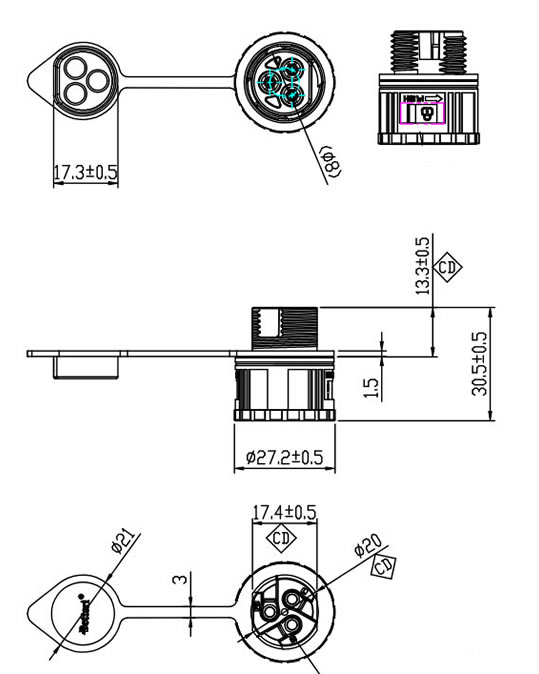

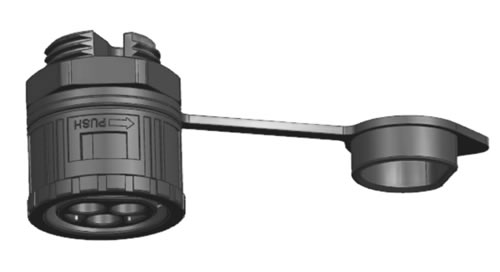

BCO1B-OFC-C panel mount female connector

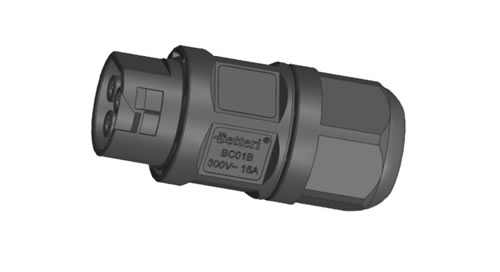

BC01B-WMC-C01 field-wirable male connector

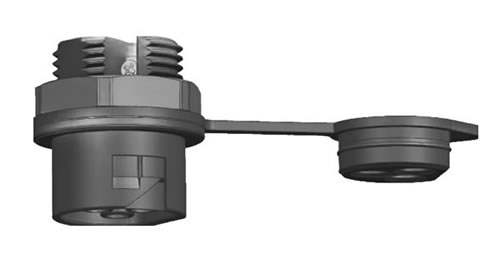

CO1B-OMC-C panel mount male connector
BC01B-WFC-C01 field-wirable female connector
Number of terminals
3P(L, N, PE)
Rated current
16A
Rated voltage
300V
Power frequency withstand voltage
4000V
Over-voltage category
Ⅲ
Pollution levels
Ⅱ
Ingress protection rating
IP68(1m,1h)
Fire retardant grade
UL94-V0 or higher
Ambient temperature range
-40℃ to 85℃
Applicable wire specifications
3C 14/16/18 AWG or 3G 2.5/1.5/1.0mm²
Locking retention force
≥150N
Mating cycles
≥400
Housing material
PA66
Standards
UL6703A, IEC 61984
Compliance
RoHS, UV Resistant
Features

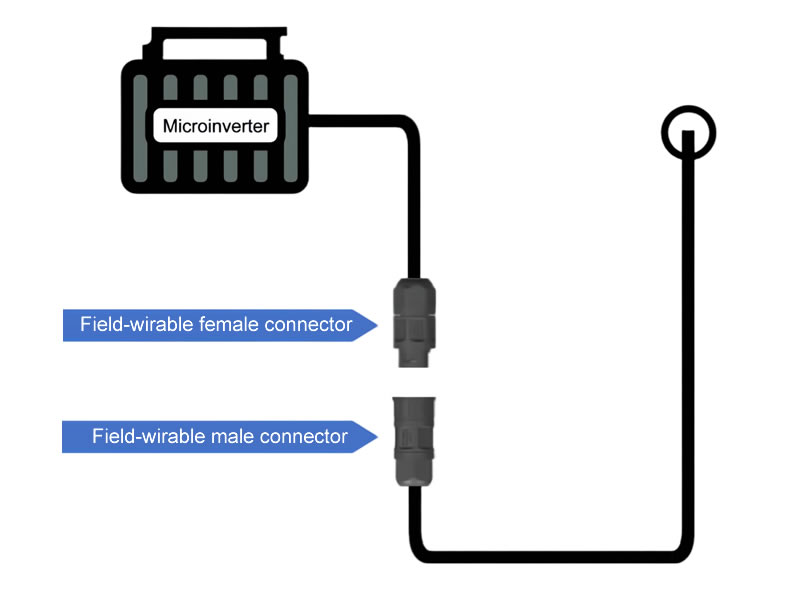

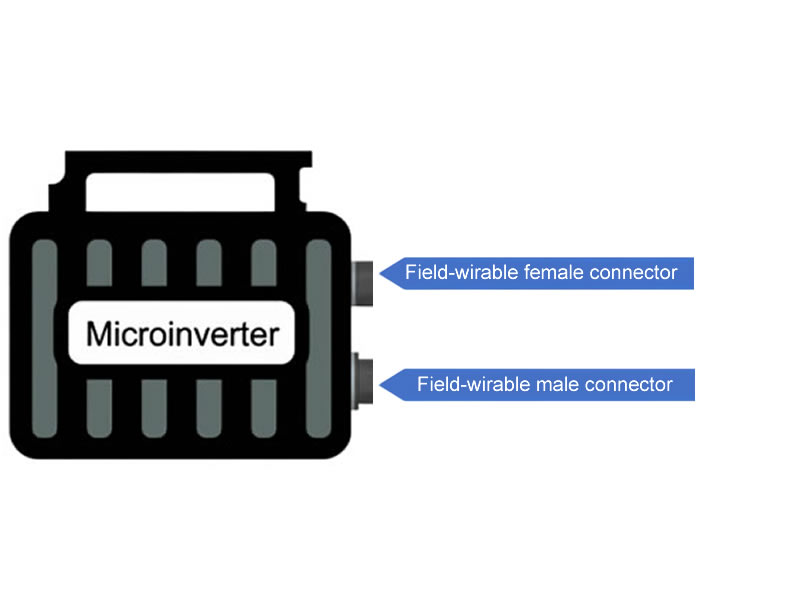

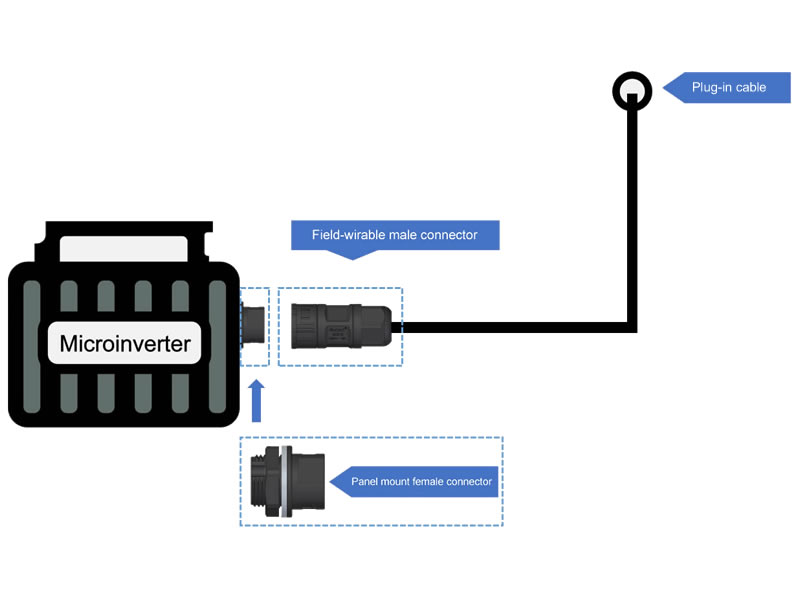

Multiple connector configurations: The connector series includes panel mount male, panel mount female, field-wirable male, and field-wirable female connectors, enabling flexible system integration across various application scenarios.

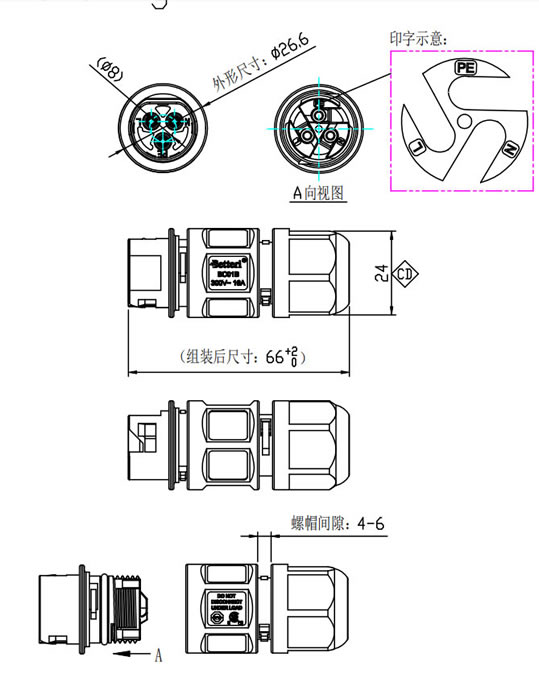

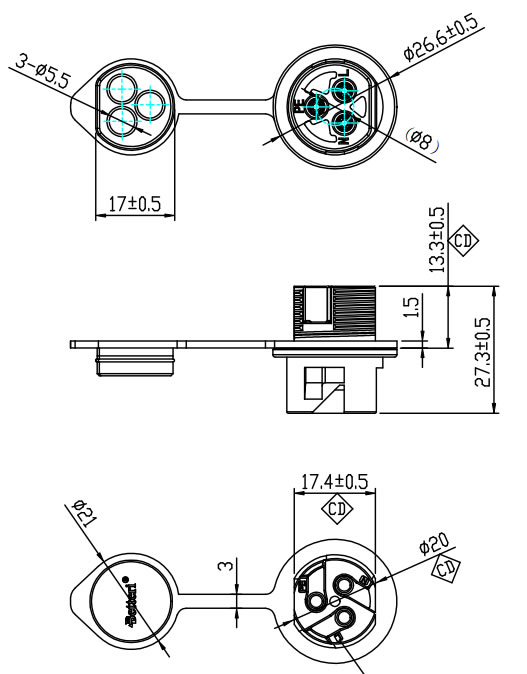

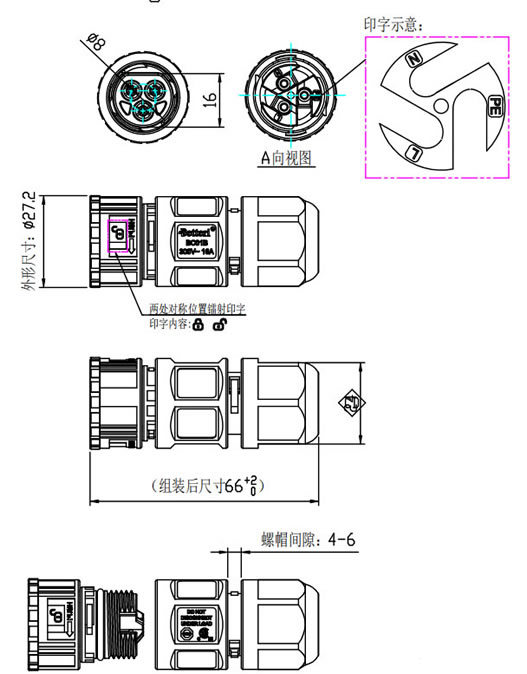

Compact and optimized dimensions: Panel-to-cable mated assembly (Overall length L = 75.24mm, outer diameter D = 26.6mm), cable-to-cable mated assembly (Overall length L = 130.0mm, outer diameter D = 26.6mm)
Cost-optimized material selection: To balance cost efficiency and product reliability, imported nylon materials are used, ensuring stable performance and consistent IP68 protection.
IP68 protection rating: Dust-tight (level 6) and water-resistant (level 8), suitable for immersion in 1m water depth for 1 hour without leakage.
UL94-V0 flame retardancy: Under testing environment, after two 10-second flame exposure, the flame self-extinguishes within 30 seconds, significantly reducing fire risk and improving system safety
Automatic locking mechanism: Male and female connectors automatically lock upon full insertion. The retention force after mating exceeds 200N, ensuring secure and vibration-resistant connections.
