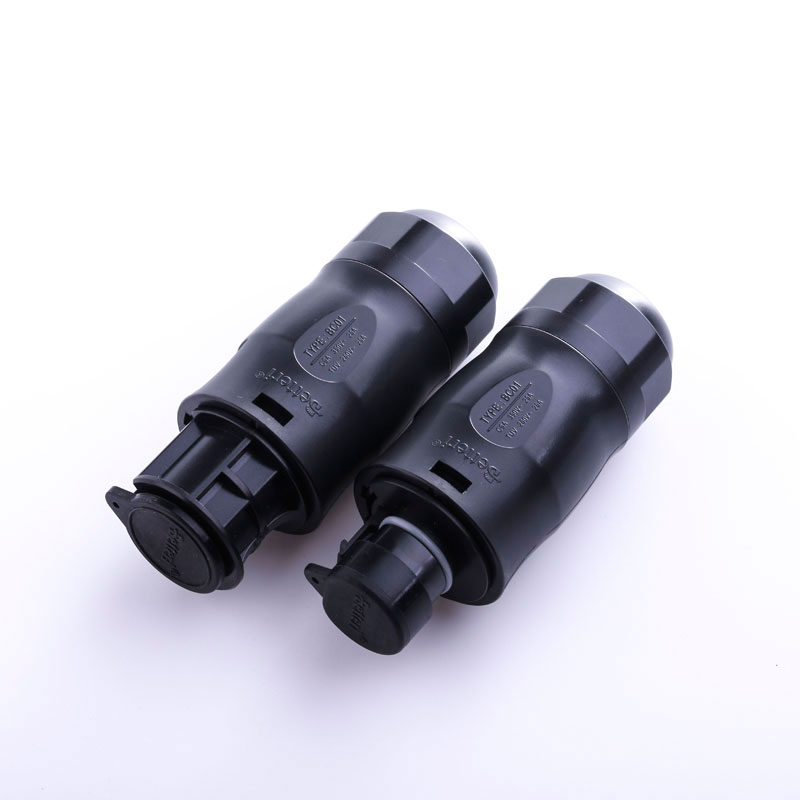

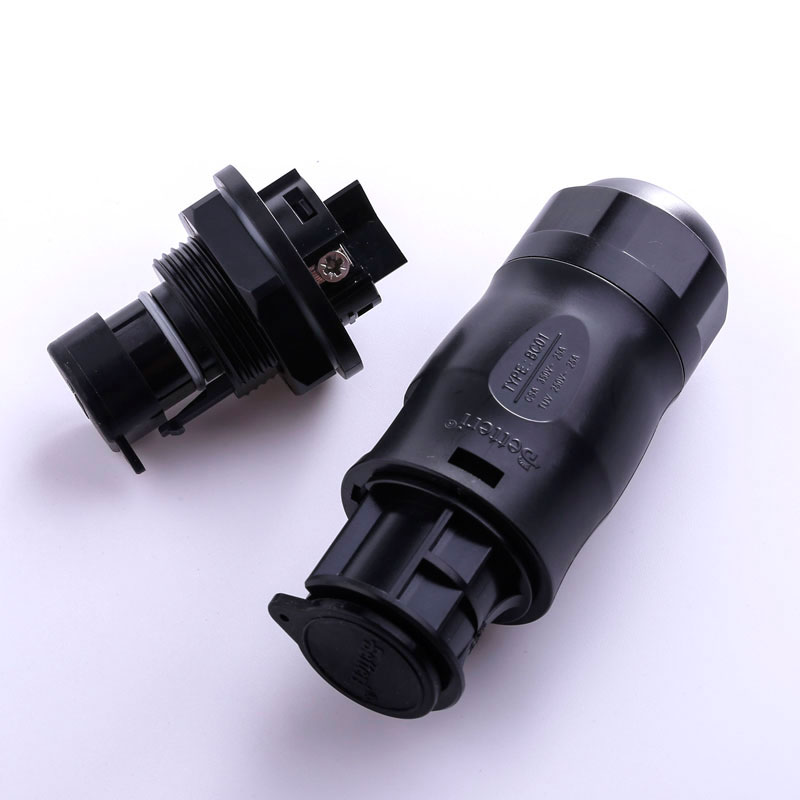

BC01 Circular Connectors (Three-Pin)

Our DC photovoltaic connectors are used for the connection of panels, inverters or junction boxes. Different tools are used for screw installation and removal, and each coupler has an exceptional resistance to UV light, salt spray, high temperature, vibration, and shock, as well as feature an outstanding sealing performance. Each coupler is TUV certified for quality and reliability.

  • Power range: 1000w-5000w, single phase
  • Rated voltage: 250v/350V AC (CSA) 250V AC (TUV)
  • Rated current: 25A (4mm²), maximum current: 30A(4mm²)
  • Electrode cores: 2+PE
  • Waterproof Rating: IP68(1m,1h)
  • Applicable wire gauge: 2.5/4.0mm²
  • Outer cable diameter (OD): 8-18mm
Products
BC01 Circular Connectors (Three-Pin)

BC01 (CC2) Wire-to-Wire Connector
BC01 Circular Connectors (Three-Pin)

BC01 (FC2) Board-to-Wire Connector
Model BC01-3M22-15 BC01-3F22-15 BC01-3M22-05 BC01-3F22-15
General Number of Contacts 2+PE
Rated Current 25A (when use 4mm² wire)
Rated Voltage TUV: 250V AV CSA:250/350V AV
Contact Resistance ≤1mΩ
Rated Impulse Withstand Voltage 4000V AC
Over-voltage Category Ⅲ
Pollution Degree 2(mated)
Waterproof Rating IP68 (1m,1h)
Insertion and Withdraw Force 10~50N
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃
Standards EN 61535:2012 PPP 59015A:2013 IEC and VED- Safety requirements and tests
UL6703A USA and Canada – Safety requirements and tests
RoHS Compliant Yes
Connection Data Applicable Wire Gauge 2.5/4.0mm² or 14/12/10AWG 2.5/4.0mm² or 14/12AWG
Outer Cable Diameter 8-18mm
Locking System Bayonet
Model Connector Gender Male Female Male Female
Wiring Connection Screw Type
Material Housing and Dielectric Material PPO(Polyphenylene Oxide)
Contact Material CuZn Alloy(cutting)
Contact Surface Silver-plated
Sealing Gasket Silicon

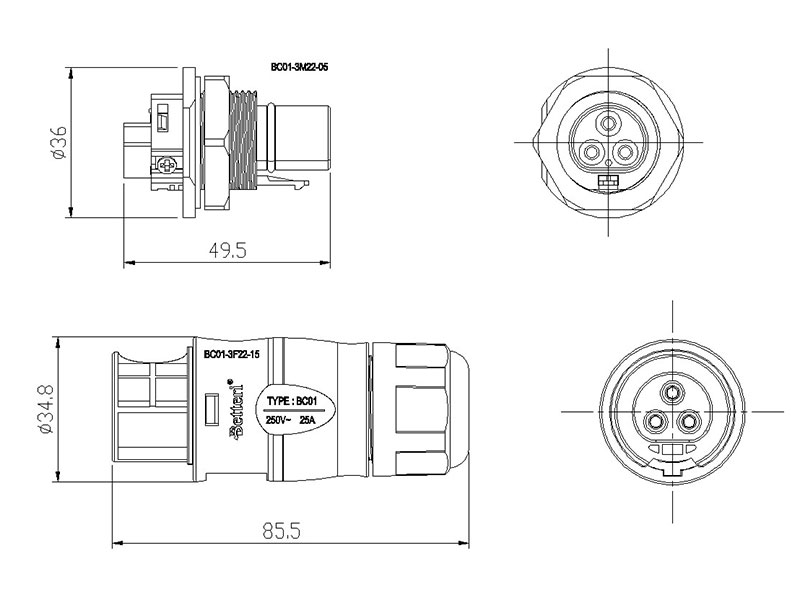

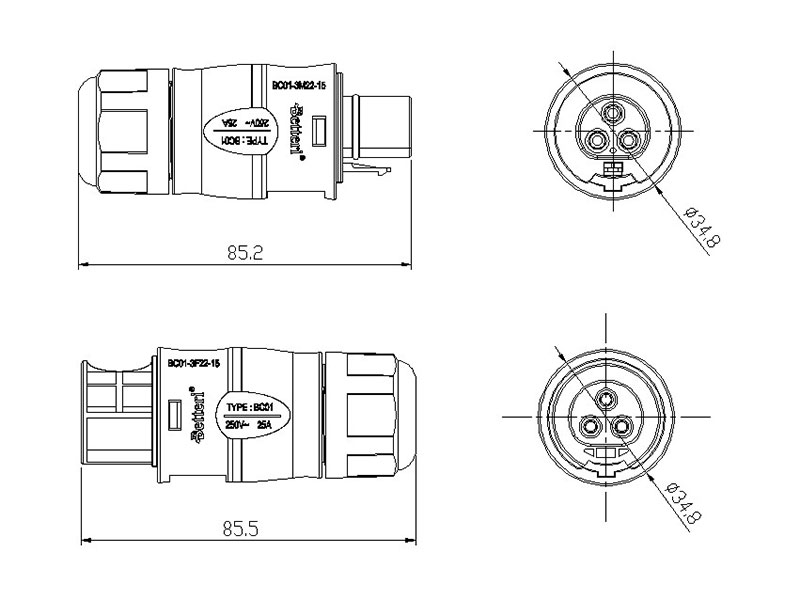

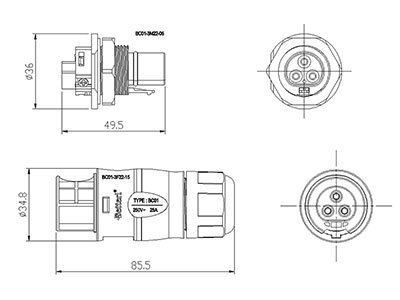

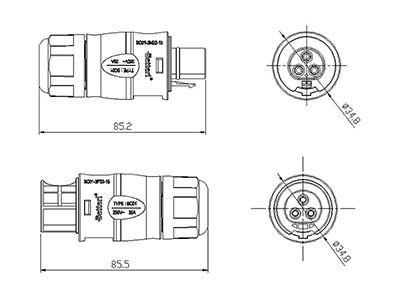

Dimensions Length 85.5mm 50.0mm 85.5mm
Width 35.0mm 36.0mm 35.0mm
Height 35.0mm 36.0mm 35.0mm
Weight 49.48g 50.96g 26.08g 50.96g
  • BC01TUV
  • BC01CSA

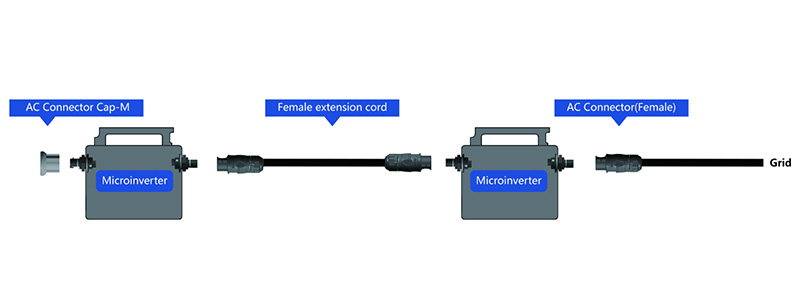

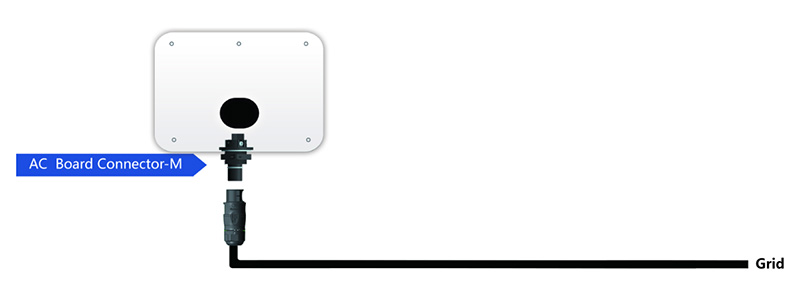

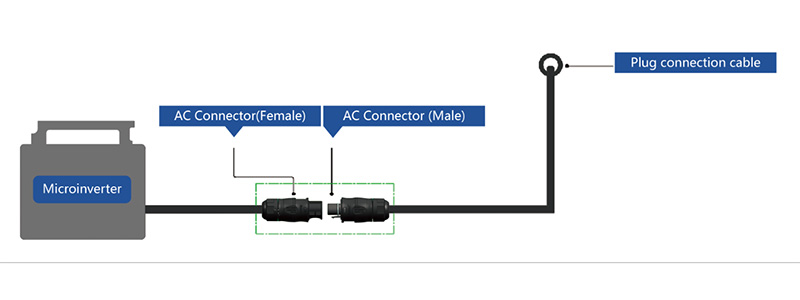

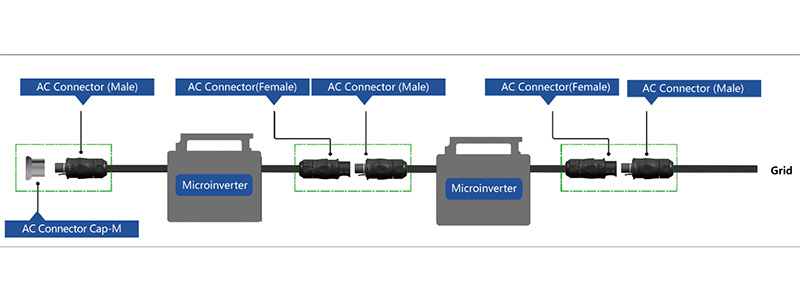

Wiring Methods
