BC05A T-Branch Connector-M

BC05A T-Branch Connector-M
  • BC05A T-Branch Connector-M
  • BC05A T-Branch Connector-M
  • BC05A T-Branch Connector-M

    • This versatile and reliable T-branch connector is designed for use with single micro inverters and seamlessly interconnects with branch connectors. Ideal for simple micro inverter systems commonly found in residential settings, it offers an efficient and user-friendly way to enhance your solar energy setup. Made with high-quality materials, this connector ensures robust performance and long-lasting durability. Its design allows for quick and secure connections, reducing installation time and ensuring stable power transfer.

    Request a Quote
    Technical Parameters
    • BC05A T-Branch Connector-M
    • BC05A T-Branch Connector-M
    Rated Current 12A
    Rated Voltage 300V
    Protection Class IP68
    Enclosure Flame Class UL94-V0
    Applicable Environment Temperature -40℃~+85℃
    Rated Impulse Withstand Voltage 4000V
    Applicable Cable 16/18AWG
    1.5/1.0mm²
    Insertion And Withdraw Force Insertion Force≈60N
    Withdraw Force≥150N
    Pollution Degree II(mated)
    Mechanical Insertion and Withdrawal Cycles ≥400times

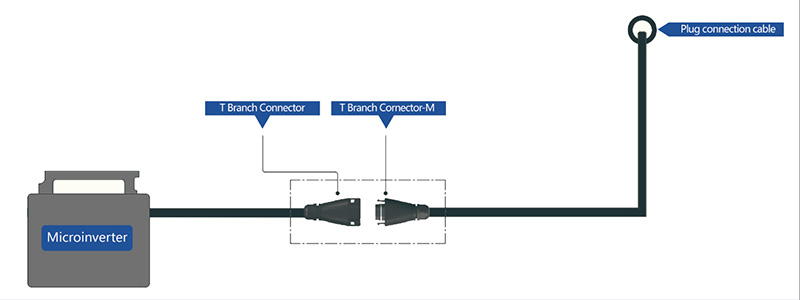

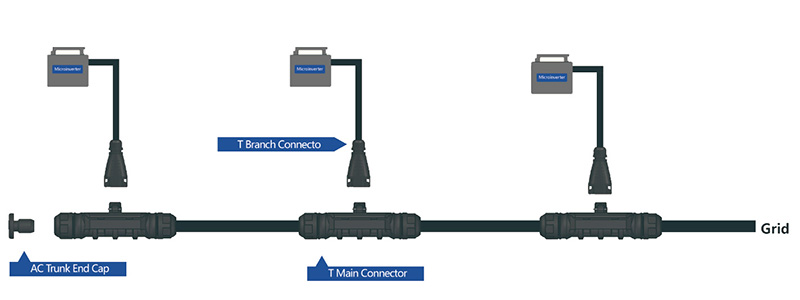

    Wiring Methods
    • Wiring Methods
    • Wiring Methods

    Betteri is a solar connector manufacturer specializing in providing photovoltaic connectors and solar accessories for customers’ solar connection applications. We pride ourselves on being reliable distributor of electronic components in the field of solar energy. Our extensive value added service includes providing solar product solutions to help get your job of photovoltaic interconnection systems done.
