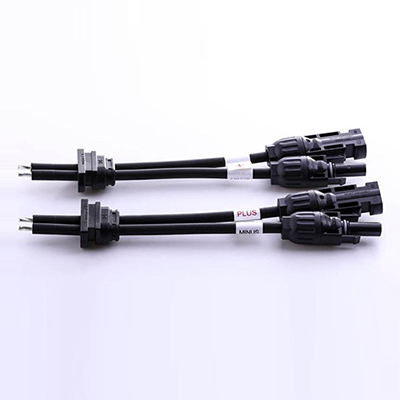

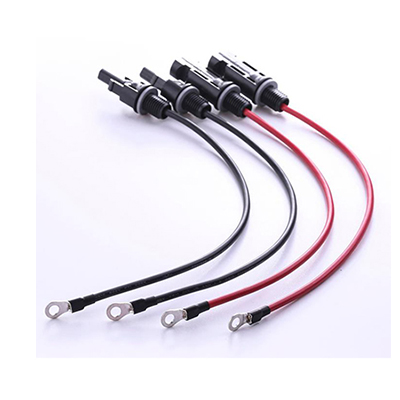

Photovoltaic Connector and Cable(Female and male cable coupler)

  • Photovoltaic Connector and Cable
  • Photovoltaic Connector and Cable

Certified by EN, TUV or UL, PV DC connectors with cables are designed for 1500V DC solar power systems, realizing reliable connection among solar panels, inverters, junction boxes and power controllers. Solar cables are available with custom length, color, etc.
Betteri can offer custom solar connectors and cables to cover all PV project needs. Reliable and stable connection among all units in the solar power systems can be guaranteed with our quality and proven solar connectors and cables.

Technical Parameters
PV connector O.D.range for suitable cables 5~6.8mm
Rated voltage 1000V/1500V(TUV/CSA)
IP rating IP67
Applicable cable gauge 2.5/4.0/6.0mm²----14/12/10AWG
Flammability rating UL94-V0
Contact resistance ≤0.5mΩ
Solar cable Applicable cable gauge 2.5/4.0/6.0mm²----14/12/10AWG
Certificates (TUV/UL/EN)
Applicable environmental temperature -40℃~+90℃
Rated voltage 600V/1000V/1500V
color customized
length customized

Betteri is a solar connector manufacturer specializing in providing photovoltaic connectors and solar accessories for customers’ solar connection applications. We pride ourselves on being reliable distributor of electronic components in the field of solar energy. Our extensive value added service includes providing solar product solutions to help get your job of photovoltaic interconnection systems done.
