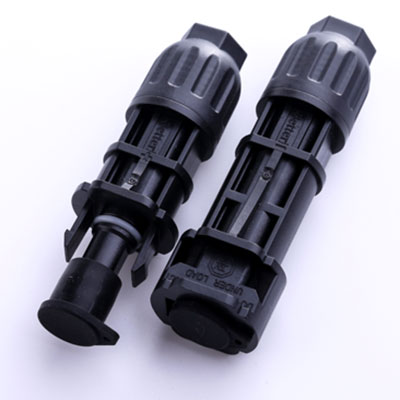

BC03C Photovoltaic Connector (Female and male cable coupler)

The DC photovoltaic connectors are used in the connection of solar panels, inverters or junction boxes. These couplers feature a strong resistance to UV light, salt spray, high temperatures, vibration and electric shock, as well as feature an excellent sealing structure. With a reliable performance, these photovoltaic connectors are TUV certified.

  • BC03C Photovoltaic Connector (Female and male cable coupler)
  • BC03C Photovoltaic Connector (Female and male cable coupler)
  • Waterproof Rating: IP67(1M,1H)
  • Rated voltage:1500V DC TUV
  • Rated current:30A
  • Contact resistance: ≤0.5mΩ
  • Flammability Rating: UL94-V0
  • Applicable wire gauge: 2.5/4.0/6.0mm2
  • Outer cable diameter (OD): 5-6.8mm
  • Locking system: snap-in
Model: BC03C-M-C24
Connector Gender Male
Backshell Assembly Style Straight Crimp
Technical Parameters

General

Rated Current 40A
Rated Voltage 1500V DC(TUV)
Contact Resistance ≤0.5mΩ
Insulation Resistance ≧400MΩ
Rated Impulse Withstand Voltage 8000V
Over-voltage Category Ⅲ
Pollution Degree 2
Waterproof Rating IP67(mated)
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃

Connection Data

Number of Contacts 01 Pin
Applicable Wire Gauge 2.5/4.0/6.0mm² or 14/12/10AWG
Outer Cable Diameter 5~6.8mm

Material

Housing Material PC(Polycarbonate)
Contact Material Red Copper(punching)/CuZn Alloy(cutting)
Contact Surface Tin-plated/Silver-plated
Sealing Gasket Silicon

Standards

EN 62852: 2014 IEC - Safety requirements and tests
RoHS Compliant Yes

Dimensions

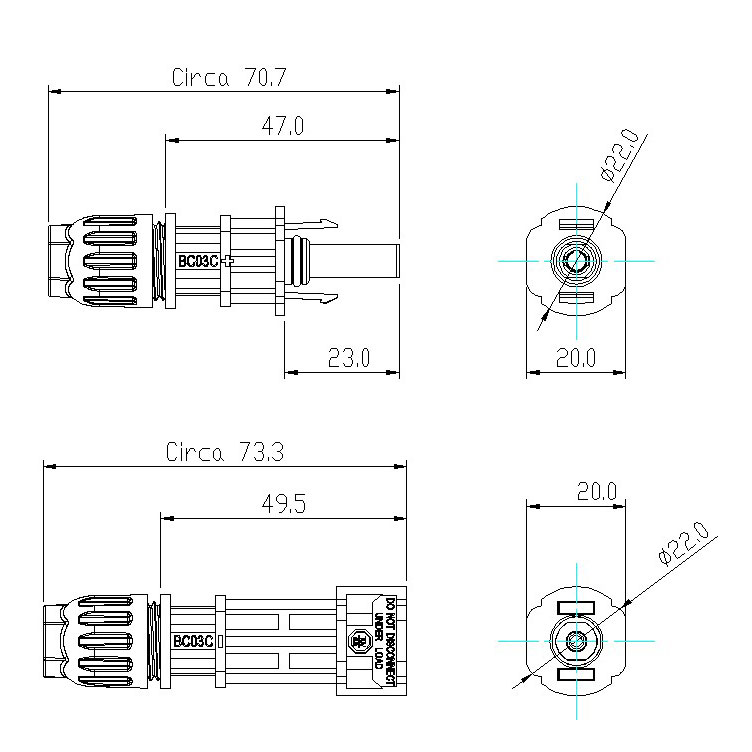

Length 70mm
Width 22.0mm
Height 20.0mm
Weight 12.7g
Model: BC03C-F-C24
Connector Gender Female
Backshell Assembly Style Straight Crimp

General

Rated Current 40A
Rated Voltage 1500V DC(TUV)
Contact Resistance ≤0.5mΩ
Insulation Resistance ≧400MΩ
Rated Impulse Withstand Voltage 8000V
Over-voltage Category Ⅲ
Pollution Degree 2
Waterproof Rating IP67(mated)
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃

Connection Data

Number of Contacts 01 Pin
Applicable Wire Gauge 2.5/4.0/6.0mm² or 14/12/10AWG
Outer Cable Diameter 5~6.8mm

Material

Housing Material PC(Polycarbonate)
Contact Material Red Copper(punching)/CuZn Alloy(cutting)
Contact Surface Tin-plated/Silver-plated
Sealing Gasket Silicon

Standards

EN 62852: 2014 IEC - Safety requirements and tests
RoHS Compliant Yes

Dimensions

Length 73.2mm
Width 22.0mm
Height 20.0mm
Weight 13g
