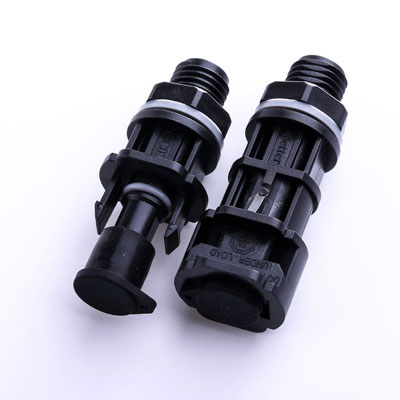

BC03D Photovoltaic Connector (Female and male cable coupler)

Our DC photovoltaic connectors are used for the connection of panels, inverters or junction boxes. Different tools are used for screw installation and removal, and each coupler has an exceptional resistance to UV light, salt spray, high temperature, vibration, and shock, as well as feature an outstanding sealing performance. Each coupler is TUV certified for quality and reliability.

  • BC03D Photovoltaic Connector (Female and male cable coupler)
  • BC03D Photovoltaic Connector (Female and male cable coupler)
  • Waterproof Rating: IP67(1M,1H)
  • Rated voltage:1500V DC TUV
  • Rated current:30A
  • Contact resistance: ≤0.5mΩ
  • Flammability Rating: UL94-V0
  • Applicable wire gauge: 2.5/4.0/6.0mm2
  • Outer cable diameter (OD): 5-6.8mm
  • Locking system: snap-in

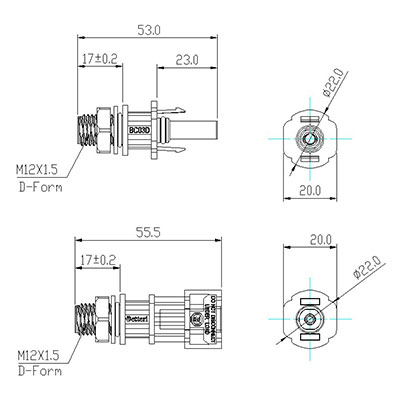

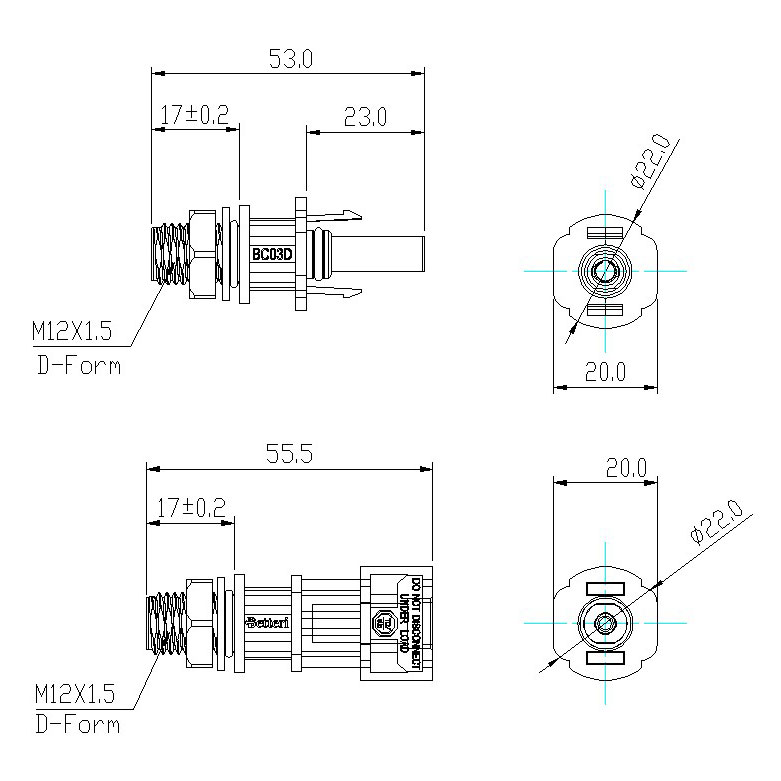

Model: BC03D-M-D17
Connector Gender Male
Backshell Assembly Style Straight Crimp
Fixed Thread Metric M12
Size of Panel Cutout Φ12.3+0.2/0
Length of Screw Body 17mm
Technical Parameters

General

Rated Current 30A
Rated Voltage 1500V DC(TUV)
Contact Resistance ≤0.5mΩ
Insulation Resistance ≧400MΩ
Rated Impulse Withstand Voltage 8000V
Over-voltage Category Ⅲ
Pollution Degree 2
Waterproof Rating IP67(mated)
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃

Connection Data

Number of Contacts 01 Pin
Applicable Wire Gauge 2.5/4.0/6.0mm² or 14/12/10AWG
Outer Cable Diameter 5~6.8mm

Material

Housing Material PC(Polycarbonate)
Contact Material Red Copper(punching)/CuZn Alloy(cutting)
Contact Surface Tin-plated/Silver-plated
Sealing Gasket Silicon

Standards

EN 6285: 2014 IEC - Safety requirements and tests
RoHS Compliant Yes

Dimensions

Length 53mm
Width 22.0mm
Height 20.0mm
Weight 5.1g
Model: BC03D-F-D17
Connector Gender Female
Backshell Assembly Style Straight Crimp
Fixed Thread Metric M12
Size of Panel Cutout Φ12.3+0.2/0
Length of Screw Body 17mm

General

Rated Current 40A
Rated Voltage 1500V DC(TUV)
Contact Resistance ≤0.5mΩ
Insulation Resistance ≧400MΩ
Rated Impulse Withstand Voltage 8000V
Over-voltage Category Ⅲ
Pollution Degree 2
Waterproof Rating IP67(mated)
Flammability Rating UL94-V0
IEC Protection Class Ⅱ
Rated Temperature -40℃~+85℃

Connection Data

Number of Contacts 01 Pin
Applicable Wire Gauge 2.5/4.0/6.0mm² or 14/12/10AWG
Outer Cable Diameter 5~6.8mm

Material

Housing Material PC(Polycarbonate)
Contact Material Red Copper(punching)/CuZn Alloy(cutting)
Contact Surface Tin-plated/Silver-plated
Sealing Gasket Silicon

Standards

EN 6285: 2014 IEC - Safety requirements and tests
RoHS Compliant Yes

Dimensions

Length 55.5mm
Width 22.0mm
Height 20.0mm
Weight 8.3g
