BC05C T-Shape Solar Connector (for Micro Inverter)

BC05C T-Shape Solar Connector (for Micro Inverter)
  • BC05C T-Shape Solar Connector (for Micro Inverter)
  • BC05C T-Shape Solar Connector (for Micro Inverter)
  • BC05C T-Shape Solar Connector (for Micro Inverter)
  • BC05C T-Shape Solar Connector (for Micro Inverter)
  • Request a Quote

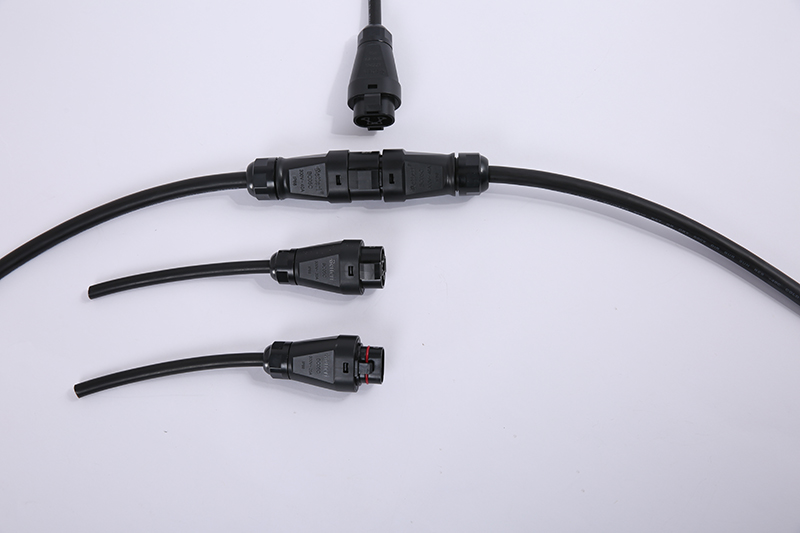

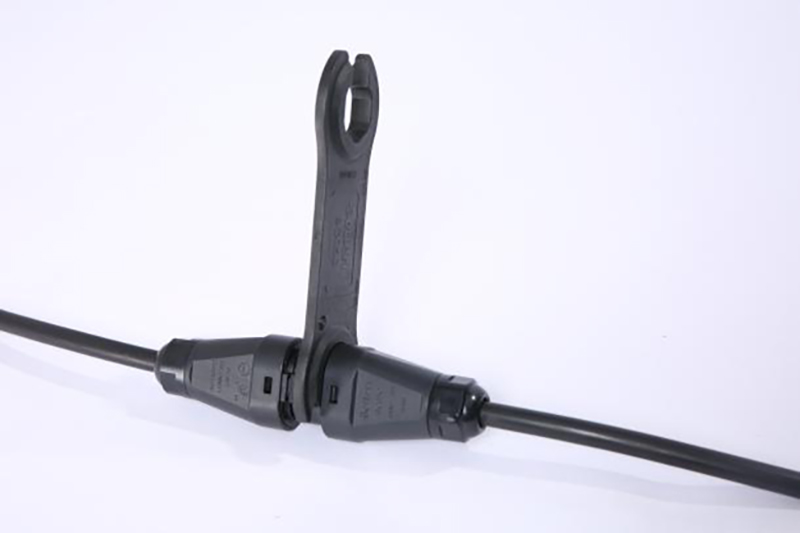

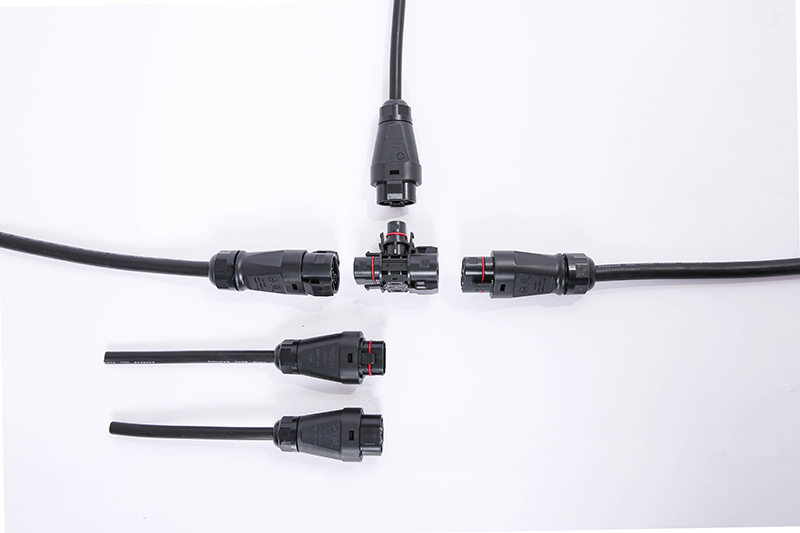

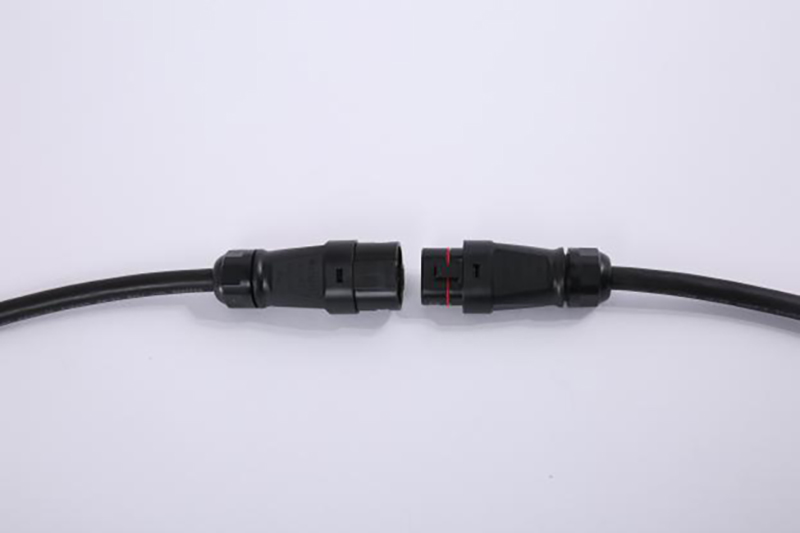

    The BC05C is a circular connector developed by Betteri to meet the needs of the photovoltaic micro inverter market. It works well with our earlier BC05A connector and is suitable for higher power inverters. This solar connector features a quick-connect design that removes the need for manual wiring on-site, offering more flexibility, ease of use, and safety. This makes it easier to set up and combine micro inverters, ideal for both home and commercial solar installations.

    • BC05C T-Shape Solar Connector (for Micro Inverter)
    • BC05C T-Shape Solar Connector (for Micro Inverter)
    • BC05C T-Shape Solar Connector (for Micro Inverter)
    • BC05C T-Shape Solar Connector (for Micro Inverter)
    • Main cable specification: 300V, 40A(10AWG);
    • Branch cable specification: 300V, 12A(16AWG);
    • Color: Black
    • Certificates:
      BC05C T-Shape Solar Connector (for Micro Inverter)
      BC05C T-Shape Solar Connector (for Micro Inverter)
    Technical Parameters

    General

    Pin Number 2P+PE
    Main Cable Rated Current 40A (10AWG/6mm² copper cable)
    Main Cable Rated Voltage 300V
    Branch Cable Rated Current 12A (16AWG/1.5mm² copper cable)
    Branch Cable Rated Voltage 300V
    Contact Resistance ≤5mΩ
    Power Frequency Withstand Voltage 1500V AC
    Over-Voltage Category Ⅲ
    Closure Pollution Degree 2(mated)
    Protection Class IP68(1m, 1h)
    Withdraw Force 20~50N
    Flammability Rating UL94-V0
    Rated Temperature -40℃~+85℃

    Connection Data

    Applicable Cable Specification Main Cable: 14/12/10AWG; branch cable: 16/18AWG
    Applicable Cable Outer Diameter Main Cable: 10~13mm; Branch Cable: 7~9.5mm
    Locking System Snap

    Connection Type

    Main Cable Connection Crimping
    Branch Cable Connection Crimping

    Material

    Housing Material PPE
    Terminal Material Copper zinc alloy
    Terminal Surface Treatment Main Cable: Tin-Plated; branch cable: gold plated
    Sealing Material Silicon Rubber

    Standards

    PPP 59015A:2013 TUV test standard
    ANSI/UL6703-2017 CSA test standard

    Dimensions

    Length 230mm
    Width 40mm
    Height 134mm
    • BC05C CSA Certification
    • BC05C TUV Certification
    • Download technical drawings

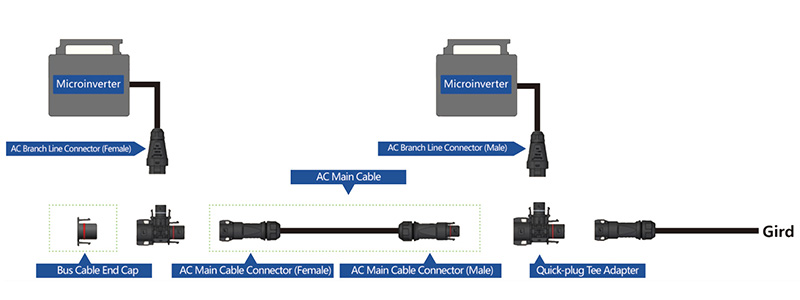

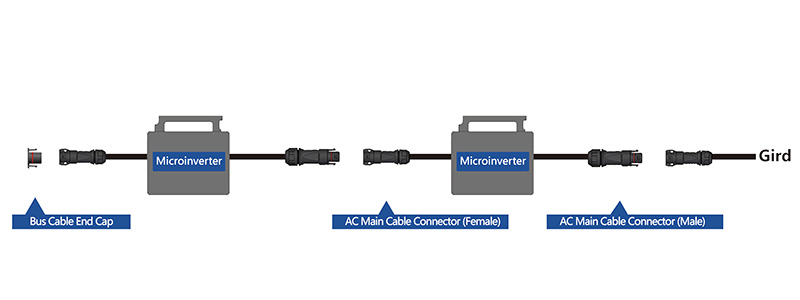

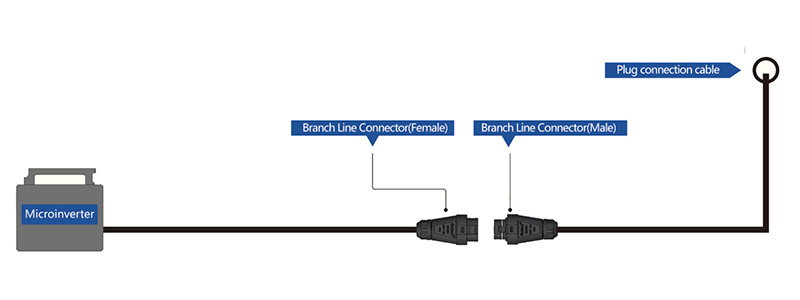

    Wiring Methods
    • Wiring Methods
    • Wiring Methods
    • Wiring Methods

    Betteri is a solar connector manufacturer specializing in providing photovoltaic connectors and solar accessories for customers’ solar connection applications. We pride ourselves on being reliable distributor of electronic components in the field of solar energy. Our extensive value added service includes providing solar product solutions to help get your job of photovoltaic interconnection systems done.
