    This photovoltaic AC connector is used for the connection of micro inverters and the bus cable. The use of high-quality engineering plastic PPO/PC and the excellent sealing performance ensure the reliability and performance. This PV connector also features an excellent resistance to UV light, salt spray, high temperatures, vibration and shock.

    • Main cable specification: 300V, 40A (10AWG)
    • Branch cable specification: 300V, 12A (16AWG)
    • Color: Black
    • Certificates:

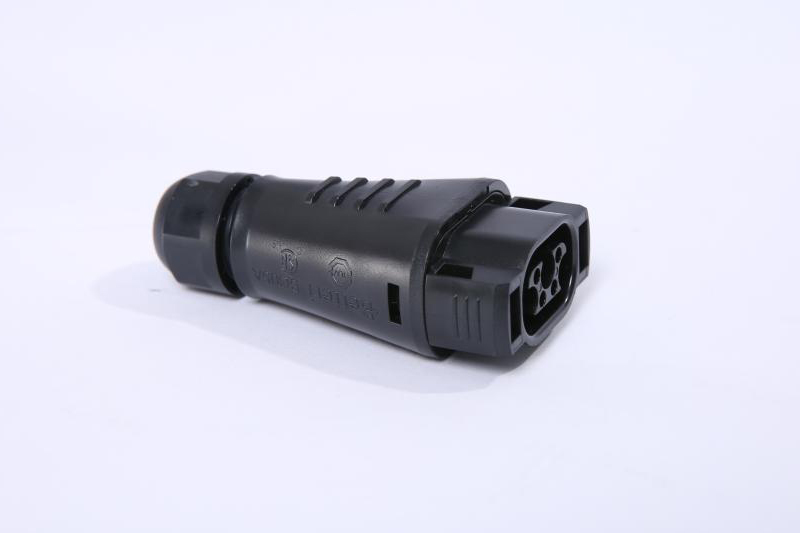

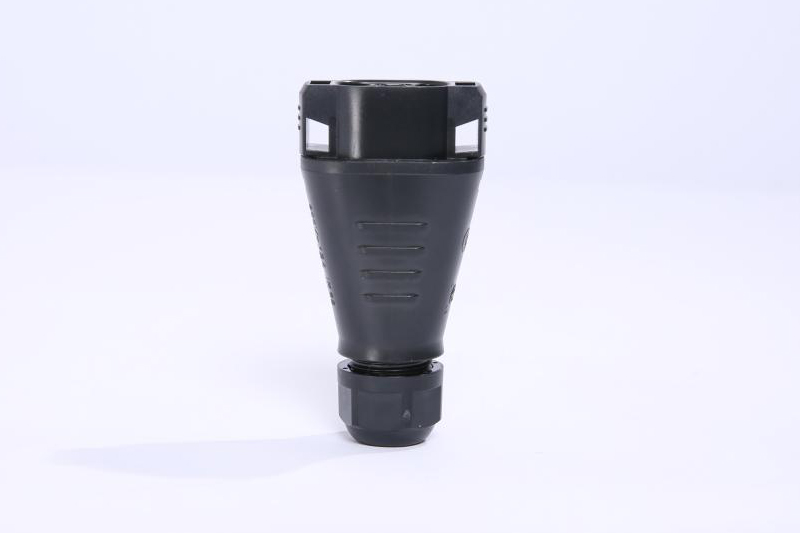

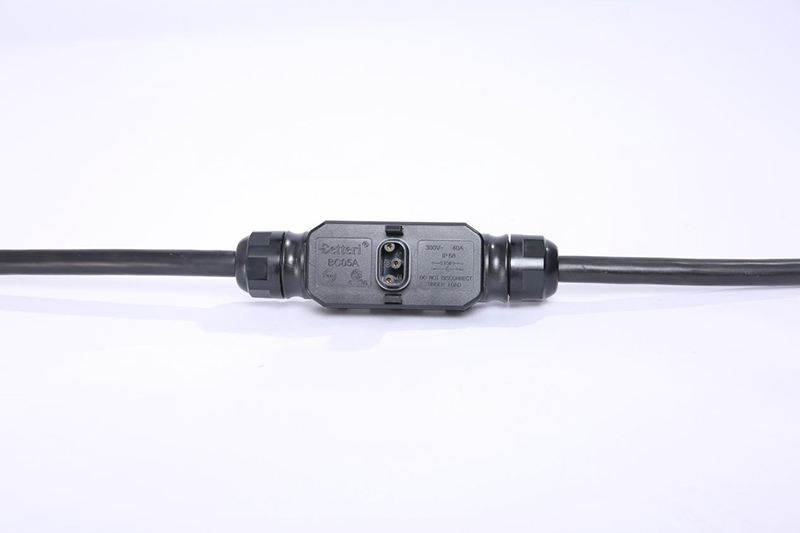

      BC05A Three-pin Solar Connector

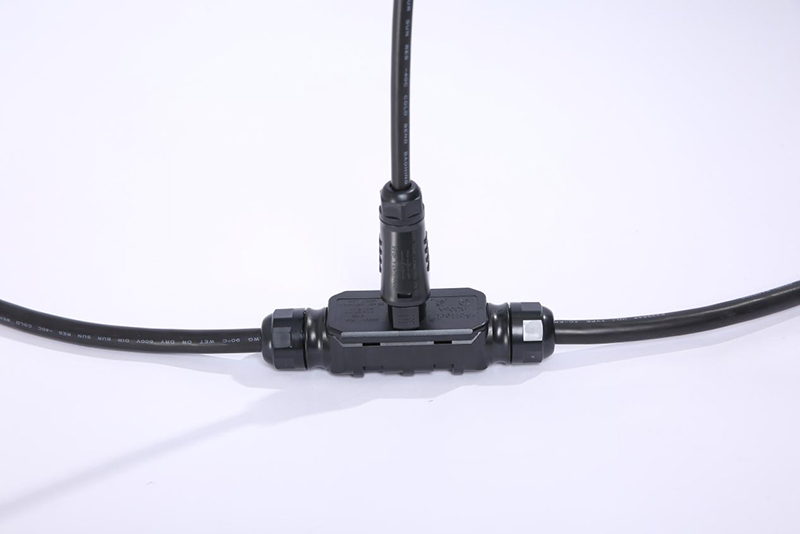

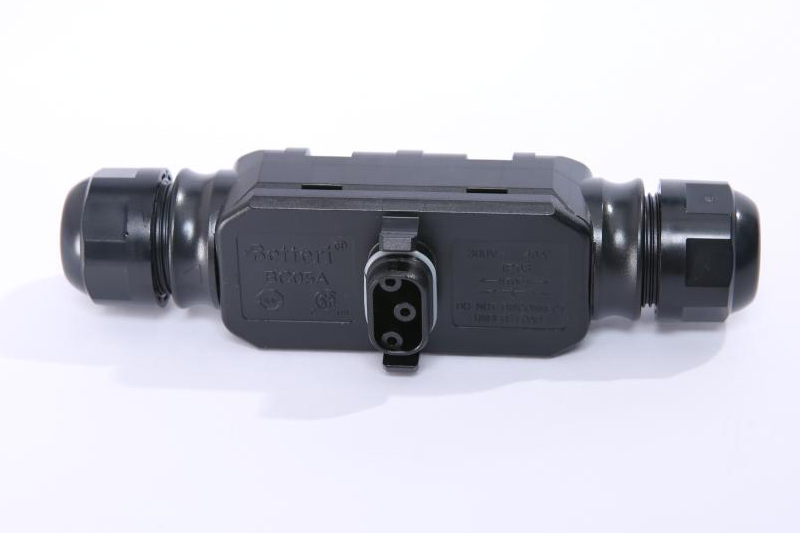

      BC05A Three-pin Solar Connector
    Technical Parameters

    General

    Pin Number 2P+PE
    Main Cable Rated Current 40A (Use 10AWG/6mm² copper cable)
    Main Cable Rated voltage 300V
    Branch Cable Rated Current 12A (Use 16AWG/1.5mm² copper cable)
    Branch Cable Rated Voltage 300V
    Contact Resistance ≤5mΩ
    Power Frequency Withstand Voltage 1500V AC
    Over-Voltage Category Ⅲ
    Closure Pollution Degree 2(mated)
    Protection Class IP68(1m, 1h)
    Withdraw Force 20~50N
    Flammability Rating UL94-V0
    Rated Temperature -40℃~+85℃

    Connection Data

    Applicable cable specification Main Line: 14/12/10AWG; branch: 16/18AWG
    Applicable cable outer diameter Main Line: 10~13mm; branch: 7~9.5mm
    Locking system Snap(8mm)

    Connection Type

    Main Cable Connection Screw Pressing
    Branch Cable Connection Crimping

    Material

    Housing Material PPE
    Terminal Material Copper zinc alloy
    Terminal Surface Treatment Main cable: Tin-plated; branch cable: gold plated
    Sealing Material Silicon Rubber

    Standards

    PPP 59015A:2013 TUV test standard
    ANSI/UL6703-2017 CSA test standard
    RoHS Compliant Yes

    Dimensions

    Length 150mm
    Width 40mm
    Height 110mm
    Wiring Method
    BC05A Three-pin Solar Connector

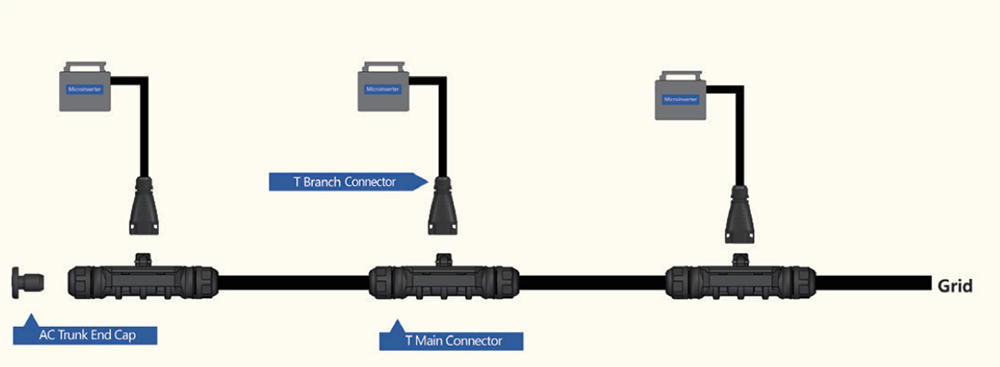

    Wiring Method (for Multi-Inverter)

    BC05A Three-pin Solar Connector

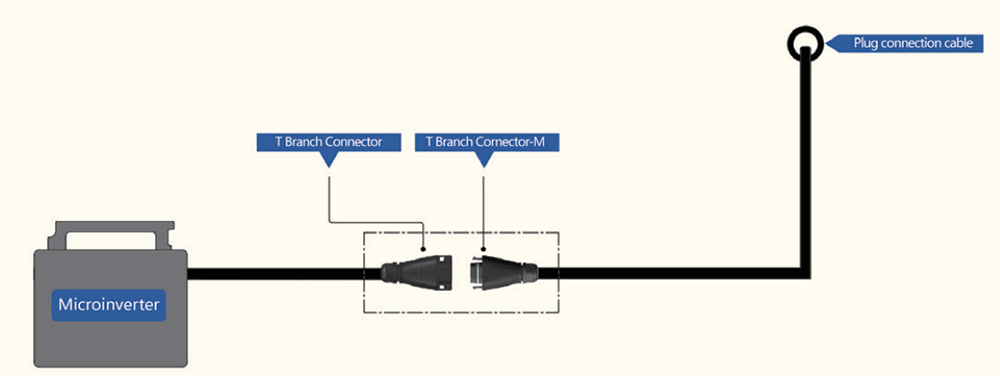

    Wiring Method (for Single Micro Inverter)
