DC Connectors

Our photovoltaic DC connector is used for supplying DC power to a power grid by mating the connector and power grid to a DC input cable or port. The DC connectors are easy to install, requiring no special tools and ensuring a long-term, reliable performance. Conductor cross section options include 2.5mm²/4mm²/6mm² and support a voltage of 600V to 1500V. The protection level of each connector is IP67 and IP68, ensuring they operate perfectly, even in harsh environments.

    1. BC03A Photovoltaic Connector (Female and male cable coupler)
    2. BC03A Photovoltaic Connector (Female and male cable coupler)
      1. Rated voltage:1000V
      2. Rated current:30A
      3. Contact resistance: ≤0.5mΩ
      4. Mechanical endurance: ≥250 times
      5. Waterproof Rating: IP67(1M,1H)
      6. Flammability Rating: UL94-V0
      7. Applicable wire gauge: 2.5/4.0/6.0mm2
      8. Outer cable diameter(OD): 5-6.8mm
    1. BC03B-ES Photovoltaic Connector (Female and Male Cable Coupler)
    2. BC03B-ES Photovoltaic Connector (Female and Male Cable Coupler)
      1. Rated Current: 30A(TUV), 40A(CSA)
      2. Rated Voltage: 1000V DC(TUV), 600/1000V DC(CSA)
      3. Contact Resistance: ≤0.5mΩ
      4. Insulation Resistance: ≧400MΩ
      5. Rated Impulse Withstand Voltage: 6000V
      6. Over-Voltage Category: Ⅲ
      7. Pollution Degree: 2
      8. Waterproof Rating: IP67(mated)
    1. BC03C Photovoltaic Connector (Female and male cable coupler)
    2. BC03C Photovoltaic Connector (Female and male cable coupler)
      1. Waterproof Rating: IP67(1M,1H)
      2. Rated voltage:1500V DC TUV
      3. Rated current:30A
      4. Contact resistance: ≤0.5mΩ
      5. Flammability Rating: UL94-V0
      6. Applicable wire gauge: 2.5/4.0/6.0mm2
      7. Outer cable diameter (OD): 5-6.8mm
      8. Locking system: snap-in
    1. BC03D Photovoltaic Connector (Female and male cable coupler)
    2. BC03D Photovoltaic Connector (Female and male cable coupler)
      1. Waterproof Rating: IP67(1M,1H)
      2. Rated voltage:1500V DC TUV
      3. Rated current:30A
      4. Contact resistance: ≤0.5mΩ
      5. Flammability Rating: UL94-V0
      6. Applicable wire gauge: 2.5/4.0/6.0mm2
      7. Outer cable diameter (OD): 5-6.8mm
      8. Locking system: snap-in
    1. BC03H Photovoltaic Connector (Female and Male Cable Coupler)
    2. BC03H Photovoltaic Connector (Female and Male Cable Coupler)
      1. Rated Current: 30A(TUV), 35A(CSA)
      2. Rated Voltage: 1100V DC(TUV, CSA)
      3. Contact Resistance: ≤0.5mΩ
      4. Insulation Resistance: ≧400MΩ
      5. Rated Impulse Withstand Voltage: 6000V
      6. Over-Voltage Category: Ⅲ
      7. Pollution Degree: 2
      8. Waterproof Rating: IP67(mated)
    1. Photovoltaic Connector and Cable (Female and male cable coupler)
    2. Photovoltaic Connector and Cable (Female and male cable coupler)
      Certified by EN, TUV or UL, PV DC connectors with cables are designed for 1500 VDC solar power systems, realizing reliable connection among solar panels, inverters, junction boxes and power controllers. Solar cables are available with custom length, color, etc.
      Betteri can offer custom solar connectors and cables to cover all PV project needs. Reliable and stable connection among all units in the solar power systems can be guaranteed with our quality and proven solar connectors and cables.
  • DC Connectors
  • DC Connectors
  • DC Connectors
  • DC Connectors
  • DC Connectors
  • DC Connectors

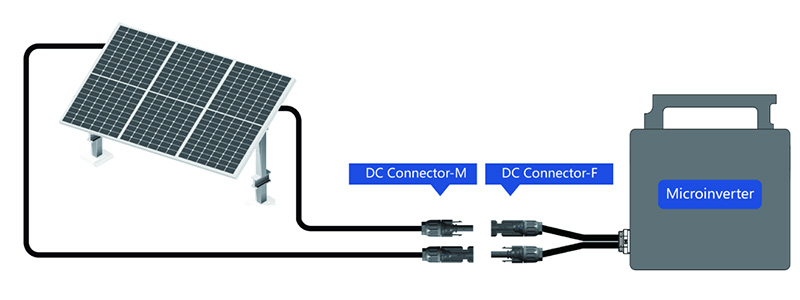

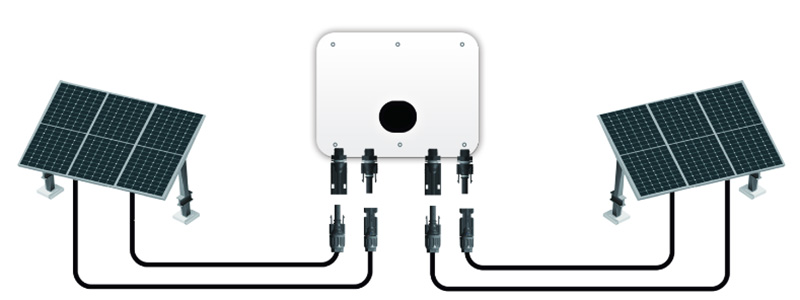

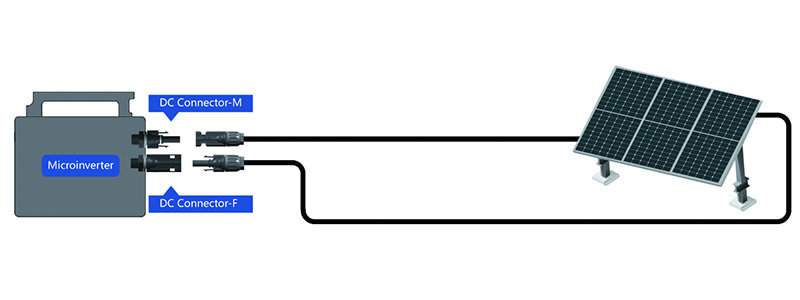

Wiring Methods
  • Wiring Methods
  • Wiring Methods
  • Wiring Methods

Betteri is a solar connector manufacturer specializing in providing photovoltaic connectors and solar accessories for customers’ solar connection applications. We pride ourselves on being reliable distributor of electronic components in the field of solar energy. Our extensive value added service includes providing solar product solutions to help get your job of photovoltaic interconnection systems done.
