Type G Plug to AC Solar Connector Cable Assembly

Type G Plug to AC Solar Connector Cable Assembly
  • Type G Plug to AC Solar Connector Cable Assembly
  • Type G Plug to AC Solar Connector Cable Assembly
  • Type G Plug to AC Solar Connector Cable Assembly
    • BC01
    Type G Plug to AC Solar Connector Cable Assembly
  • Type G Plug to AC Solar Connector Cable Assembly
  • Type G Plug to AC Solar Connector Cable Assembly
  • Type G Plug to AC Solar Connector Cable Assembly
    • BC05A

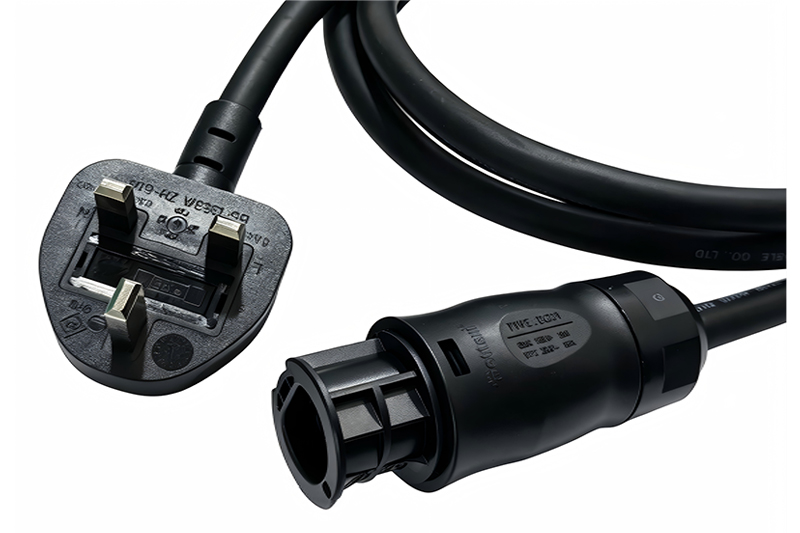

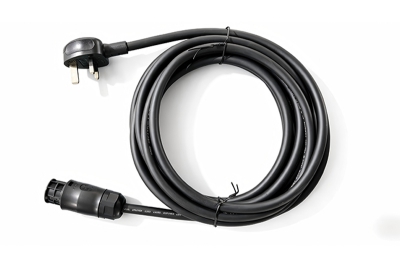

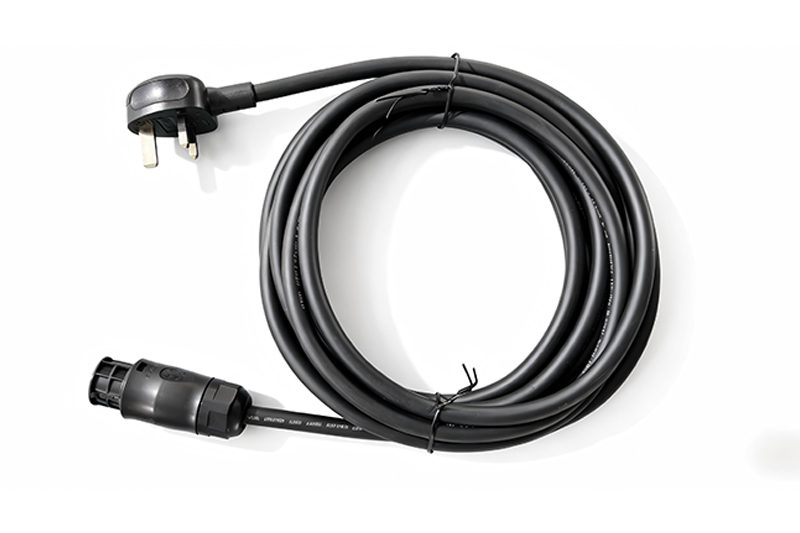

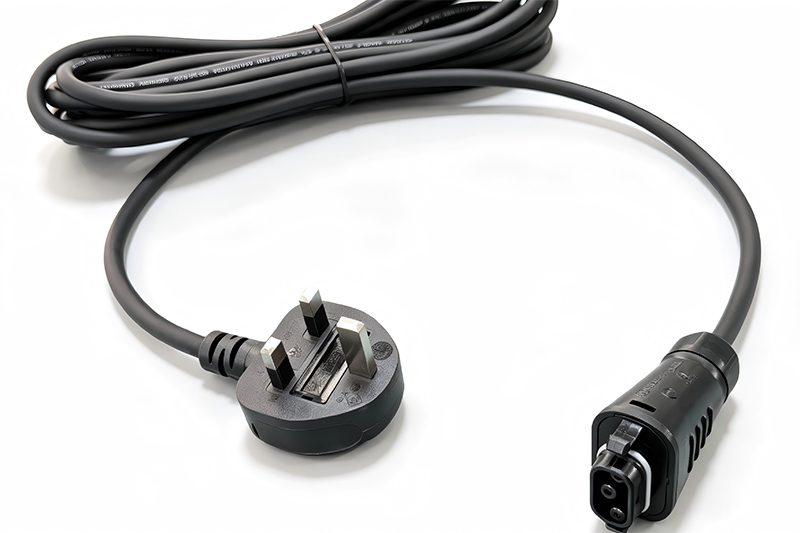

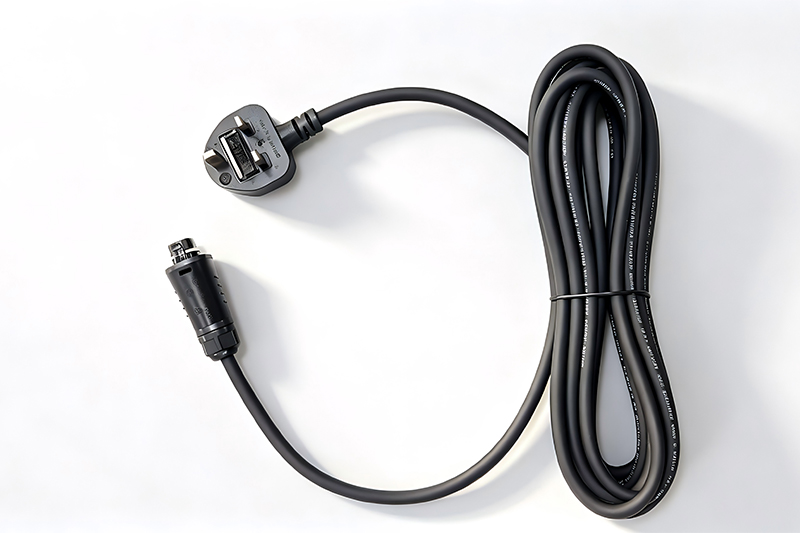

    This cable assembly combines a Type G fused mains plug, compliant with the BS 1363 safety standard plug format, with a Betteri AC solar connector. It is designed for AC-side connection in solar microinverter systems, PV equipment, and energy storage applications in the UK, Saudi Arabia, the GCC countries, Ireland, Cyprus, Malta, Malaysia, Singapore, Hong Kong, and other markets that use Type G plugs.

    Technical Specifications
    Item Specification
    Plug Model ZH-61A (Type G / BS 1363)
    Rated Current (Plug Side) 3A, 5A, 10A, 13A
    Rated Voltage (Plug Side) 250V AC
    Plug Type Type G (UK/Gulf standard)
    AC Solar Connector Model BC01 (customizable)
    Connector Type AC solar connector (compatible with microinverters and AC-side PV systems)
    Features
    • Type G Plug Structure: The Type G plug has three rectangular pins arranged in a triangular layout and an integrated safety fuse. Fuse ratings can be selected according to the application, such as 3 A for low-power PV equipment or 13 A for higher-load PV and energy storage devices. The shuttered socket design used in BS 1363 systems helps prevent accidental contact and improves operating safety.
    • PV Connector Compatibility: The assembly is compatible with the Betteri AC solar connectors and is designed to support IEC 61984:2008 connector safety requirements. It provides a reliable AC-side connection for solar power systems, including microinverter and related photovoltaic equipment.
    • Certification Support: The plug can be supplied with ASTA and GCC certification options. The AC solar connector can be configured to meet relevant UL, TÜV, and IEC requirements based on project and market needs.
    • Environmental Compliance: The complete assembly can be supplied in RoHS- and REACH-compliant configurations to support compliance requirements in global PV markets.
    • Custom Configuration: Cable length, insulation material, sheath material, connector termination, and fuse rating can be customized to match specific installation requirements.
    Application
    • AC-side connection for residential and commercial solar systems in Type G markets
    • Power connection for photovoltaic energy storage systems
    • Power supply for solar microinverters, optimizers, and PV monitoring equipment
    • Custom PV system wiring for projects in the UK, Saudi Arabia, and GCC countries
    Product Notes
    • The integrated fuse in the Type G plug provides overcurrent protection for PV equipment and supports compliance with UK electrical safety regulations (under the BS 1363 system)
    • BC01/BC05A series PV connectors offer an IP68 protection rating for dust and water resistance, making them suitable for outdoor PV system installations
    • Cable length, connector termination, and fuse rating can be customized to meet specific PV system requirements
    • Each complete assembly undergoes 100% electrical performance and safety testing before delivery

    Betteri is a solar connector manufacturer specializing in providing photovoltaic connectors and solar accessories for customers’ solar connection applications. We pride ourselves on being reliable distributor of electronic components in the field of solar energy. Our extensive value added service includes providing solar product solutions to help get your job of photovoltaic interconnection systems done.

    Inquiry
    Other PV Connectors
