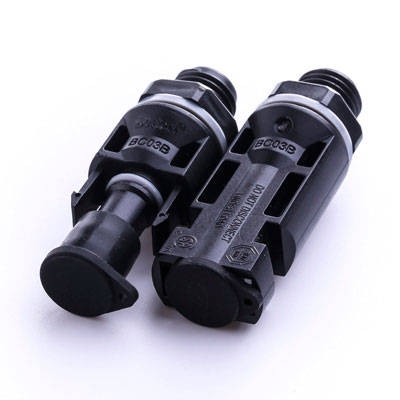

BC03B Photovoltaic Connector (Female and male cable coupler)
DC Photovoltaic connectors are connected to DC wires and ports to supply direct current (DC) power to the power grid. These connectors are quick and easy to install with no special tools required. They are also easily mated with other connectors, such as MC4 connectors. The use of high-quality engineered plastic also ensures the reliable performance and long service life. Each photovoltaic connector is TUV and CSA certified with an excellent quality and stable performance.
- Rated voltage:1000V
- Rated current:30A
- Contact resistance: ≤0.5mΩ
- Mechanical endurance: ≥250 times
- Waterproof Rating: IP67(1M，1H)
- Flammability Rating: UL94-V0
- Applicable wire gauge: 2.5/4.0/6.0mm2
- Outer cable diameter (OD): 5-6.8mm
| Connector Gender | Male and Female |
| Backshell Assembly Style | Straight Crimp |
| Fixed Thread Metric | M12 |
| Size of Panel Cutout | Φ12.3+0.2/0 |
General
| Rated Current | 30A |
| Rated Voltage | 1000V DC(TUV), 600/1000V DC(CSA) |
| Contact Resistance | ≤0.5mΩ |
| Insulation Resistance | ≧400MΩ |
| Rated Impulse Withstand Voltage | 6000V |
| Over-voltage Category | Ⅲ |
| Pollution Degree | 2 |
| Waterproof Rating | IP67(mated) |
| Flammability Rating | UL94-V0 |
| IEC Protection Class | Ⅱ |
| Rated Temperature | -40℃~+85℃ |
Connection Data
| Number of Contacts | 01 Pin |
| Applicable Wire Gauge | 2.5/4.0/6.0mm² or 14/12/10AWG |
| Outer Cable Diameter | 5~6.8mm |
Material
| Housing Material | PC(Polycarbonate) |
| Contact Material | Red Copper(punching)/CuZn Alloy(cutting) |
| Contact Surface | Tin-plated/Silver-plated |
| Sealing Gasket | Silicon |
Standards
| EN 6285: 2014 | IEC - Safety requirements and tests |
| UL6703 | USA and Canada - Safety requirements and tests |
| RoHS Compliant | Yes |

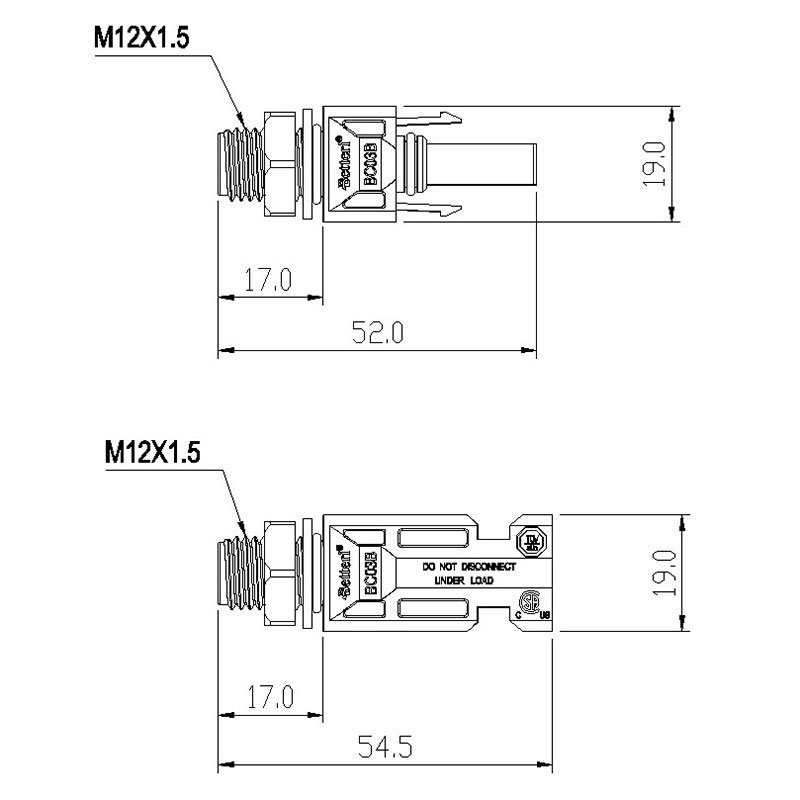

Dimensions
| Length | 50mm |
| Width | 19.0mm |
| Height | 19.0mm |
| Weight | 5.05g |
| Connector Gender | Female |
| Backshell Assembly Style | Straight Crimp |
| Fixed Thread Metric | M12 |
| Size of Panel Cutout | Φ12.3+0.2/0 |
General
| Rated Current | 30A |
| Rated Voltage | 1000V DC(TUV), 600/1000V DC(CSA) |
| Contact Resistance | ≤0.5mΩ |
| Insulation Resistance | ≧400MΩ |
| Rated Impulse Withstand Voltage | 6000V |
| Over-voltage Category | Ⅲ |
| Pollution Degree | 2 |
| Waterproof Rating | IP67(mated) |
| Flammability Rating | UL94-V0 |
| IEC Protection Class | Ⅱ |
| Rated Temperature | -40℃~+85℃ |
Connection Data
| Number of Contacts | 01 Pin |
| Applicable Wire Gauge | 2.5/4.0/6.0mm² or 14/12/10AWG |
| Outer Cable Diameter | 5~6.8mm |
Material
| Housing Material | PC(Polycarbonate) |
| Contact Material | Red Copper(punching)/CuZn Alloy(cutting) |
| Contact Surface | Tin-plated/Silver-plated |
| Sealing Gasket | Silicon |
Standards
| EN 6285: 2014 | IEC - Safety requirements and tests |
| UL6703 | USA and Canada - Safety requirements and tests |
| RoHS Compliant | Yes |
Dimensions
| Length | 56.8mm |
| Width | 19.0mm |
| Height | 19.0mm |
