This product has been discontinued and removed from our shelves.
    1. BC05 Three-pin Circular Connectors (for Micro Inverter)
    2. BC05 Three-pin Circular Connectors (for Micro Inverter)
      1. Electrode cores: three-core
      2. Main line rated voltage and current: 300V 30A
      3. Branch line rated voltage and current: 300V 8A
      4. Waterproof Rating: IP68(1.5m,24h)
      5. Flammability Rating: UL94-V0
      6. Insulation resistance: >5MΩ
      7. Insulation voltage: 1500V AC (10mA,1Min)

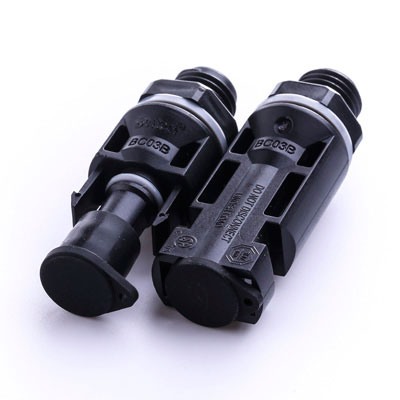

    1. BC03B Photovoltaic Connector (Female and male cable coupler)
    2. BC03B Photovoltaic Connector (Female and male cable coupler)
      1. Rated voltage:1000V
      2. Rated current:30A
      3. Contact resistance: ≤0.5mΩ
      4. Mechanical endurance: ≥250 times
      5. Waterproof Rating: IP67(1M，1H)
      6. Flammability Rating: UL94-V0
      7. Applicable wire gauge: 2.5/4.0/6.0mm2
      8. Outer cable diameter (OD): 5-6.8mm
    1. BC02 Circular Connectors (Five-Pin)
    2. BC02 Circular Connectors (Five-Pin)
      1. Power range: 20kw-30kw, three-phase
      2. Rated voltage: 690V (TUV)
      3. Rated current: 50A（10mm2）
      4. Electrode cores: 4P+PE
      5. Contact resistance: ≤5mΩ
      6. Waterproof Rating: IP67(1m,30m)
      7. Applicable wire gauge: 4-16mm2
      8. Outer cable diameter (OD): 15-24mm
      9. Operating temperature: -40℃~+85℃
