BC05 Three-pin Circular Connectors (for Micro Inverter)

This product has been discontinued and removed from our shelves.

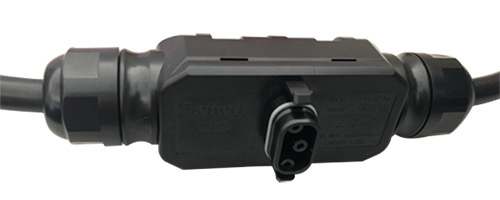

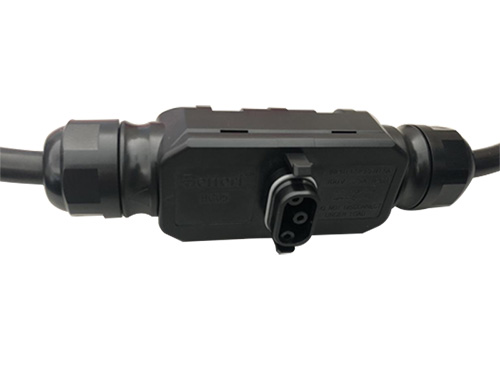

This photovoltaic AC connector is used for the connection of micro inverters and the bus cable. The use of high-quality engineering plastic PPO/PC and the excellent sealing performance ensure the reliability and performance. This PV connector also features an excellent resistance to UV light, salt spray, high temperatures, vibration and shock.

BC05
BC05 Three-pin Circular Connectors (for Micro Inverter)
BC05 Three-pin Circular Connectors (for Micro Inverter)
  • Electrode cores: three-core
  • Main line rated voltage and current: 300V 30A
  • Branch line rated voltage and current: 300V 8A
  • Waterproof Rating: IP68(1.5m,24h)
  • Flammability Rating: UL94-V0
  • Insulation resistance: >5MΩ
  • Insulation voltage: 1500V AC (10mA,1Min)
Technical Parameters

General

Pin Number 2P+PE
Main Line Rated Current 32A (Use 10AWG/6mm² copper cable)
Main Line Rated Voltage 300V
Branch Line Rated Current 12A (Use 16AWG/1.5mm² copper cable)
Branch Line Rated Voltage 300V
Contact Resistance ≤5mΩ
Power Frequency Withstand Voltage 1500V AC
Over-voltage Category Ⅲ
Closure Pollution Degree 2(mated)
Protection Class IP68(1.5m, 24hour)
Withdraw Force 50~100N
Flammability Rating UL94-V0
Rated Temperature -40℃~+85℃

Connection Data

Applicable Cable Specification Main Line: 14/12/10AWG; branch: 16/18AWG
Applicable Cable Outer Diameter Main Line: 10~13mm; branch: 7~9.5mm
Locking System Snap
Main Line Connection Screw Pressing
Branch Line Connection Crimping

Materia

Housing Material PPE
Terminal Material Copper zinc alloy
Terminal Surface Treatment Main line: tin-plated; branch line: gold plated
Sealing Material Silicon rubber

Standards

PPP 59015A:2013 TUV test standard
ANSI/UL6703-2017 CSA test standard
RoHS Compliant Yes

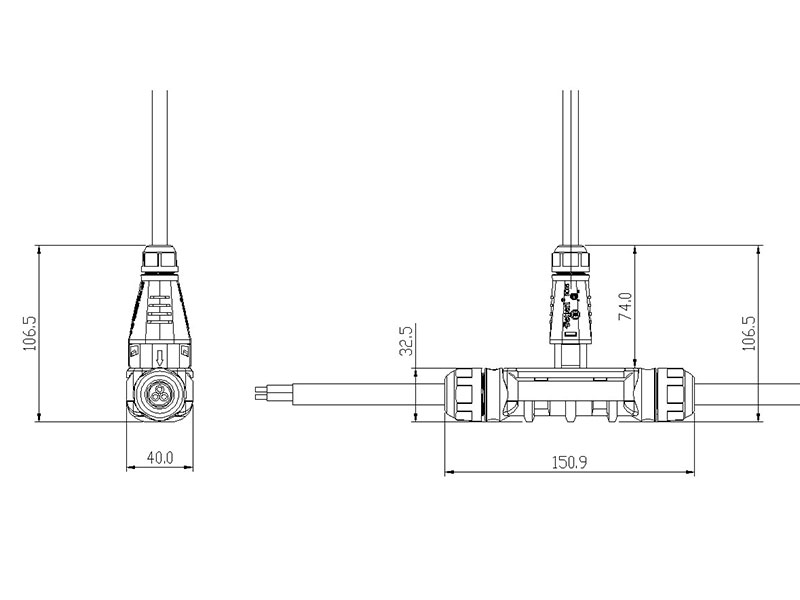

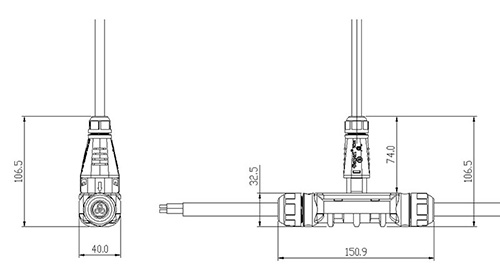

Dimensions

Length 150mm
Width 40mm
Height 110mm
