  • BC02 Circular Connectors (Five-Pin)

BC02 Circular Connectors (Five-Pin)

This product has been discontinued and removed from our shelves.

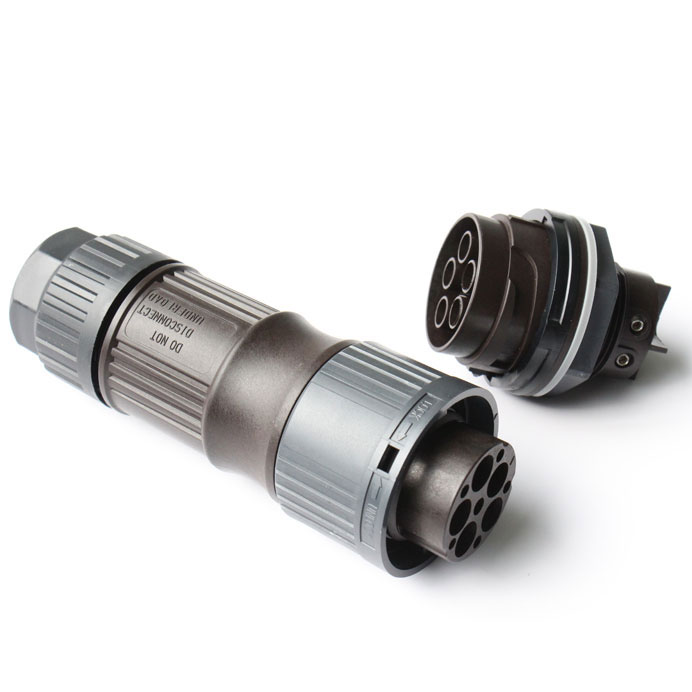

This AC 3-phase connector features a large current-carrying capacity and an excellent resistance to UV light and high temperatures, making it ideal for use in the connection of medium-power string inverters. The housing is made of a high quality, imported PA66. The stability and reliability are guaranteed thanks to the snap-lock coupling system.

  • Power range: 20kw-30kw, three-phase
  • Rated voltage: 690V (TUV)
  • Rated current: 50A(10mm2)
  • Electrode cores: 4P+PE
  • Contact resistance: ≤5mΩ
  • Waterproof Rating: IP67(1m,30m)
  • Applicable wire gauge: 4-16mm2
  • Outer cable diameter (OD): 15-24mm
  • Operating temperature: -40℃~+85℃

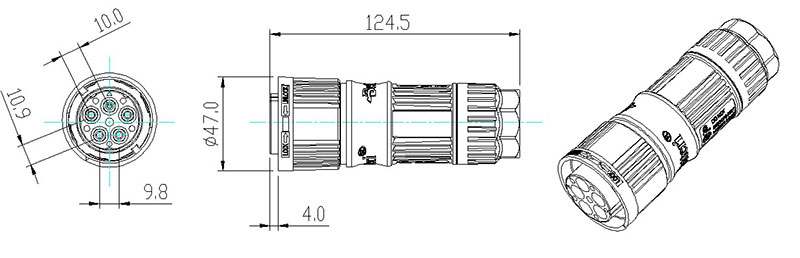

BC02(H9)

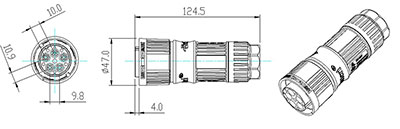

BC02 Circular Connectors (Five-Pin)
BC02 Circular Connectors (Five-Pin)
BC02 Circular Connectors (Five-Pin)
  • Art. No.(TUV, CQC 690V): BC02-5M65-19 (Cable: 6/10/16 mm²)
  • Art. No.(TUV, CQC 690V): BC02-5F65-09(Cable:6/10/16mm2)
Technical Parameters

General

Pin Number 4P+PE
Rated Current 50A(when use 10mm² wire)
Rated Voltage 690V
Contact Resistance ≤1mΩ
Rated Impulse Withstand Voltage 6000V AC
Over-voltage Category Ⅲ
Pollution Degree 2(mated)
Waterproof Rating IP67(1m, 30min)
Insertion and Withdraw Force 50~100N
Flammability Rating UL94-V0
Rated Temperature -40℃~+85℃

Connection Data

Applicable Wire Gauge 2.5/4/6/10/16mm² or 14/12/10/8/6AWG
Outer Cable Diameter 15~24mm
Locking System Bayonet

Model

Connector Gender Male
Wiring Connection Screw Type
Size of Screw M4X0.7(“--”type)

Standards

PPP 59015A:2013 TUV- Safety requirements and tests
RoHS Compliant Yes

Dimensions

Length 47.0mm
Width 47.0mm
Height 124.5mm
BC02(H6)
  • Art. No.(TUV, CQC 690V): BC02-5M65-16(cable:2.5/4/6mm2)
  • Art. No.(TUV, CQC 690V): BC02-5F65-06 (Cable: 2.5/4/6 mm²)
Technical Parameter

General

Pin Number 4P+PE
Rated Current 50A(when use 10mm² wire)
Rated Voltage 690V
Contact Resistance ≤1mΩ
Rated Impulse Withstand Voltage 6000V AC
Over-voltage Category Ⅲ
Pollution Degree 2(mated)
Waterproof Rating IP67(1m, 30min)
Insertion and Withdraw Force 50~100N
Flammability Rating UL94-V0
Rated Temperature -40℃~+85℃

Connection Data

Applicable Wire Gauge 2.5/4/6/10/16mm² or 14/12/10/8/6AWG
Outer Cable Diameter 15~24mm
Locking System Bayonet

Model

Connector Gender Female
Wiring Connection Screw Type
Size of Screw M4X0.7(“--”type)
Fixed Thread Metric M32
Size of Panel Cutout Φ32.3+0.2/0

Material

Housing and Dielectric Material PA66 (25% GF)
Contact Material CuZn Alloy
Contact Surface Silver-plated
Sealing Gasket Silicon

Standards

PPP 59015A:2013 TUV- Safety requirements and tests
RoHS Compliant Yes

Dimensions

Length 47.0mm
Width 47.0mm
Height 54.8mm
  • BC02
